8351 SAM™ Coaxial -studiomonitori on poikkeuksellisen pienikokoinen kolmitiekaiutin. Se sisältää useita käänteentekeviä suunnitteluratkaisuja.

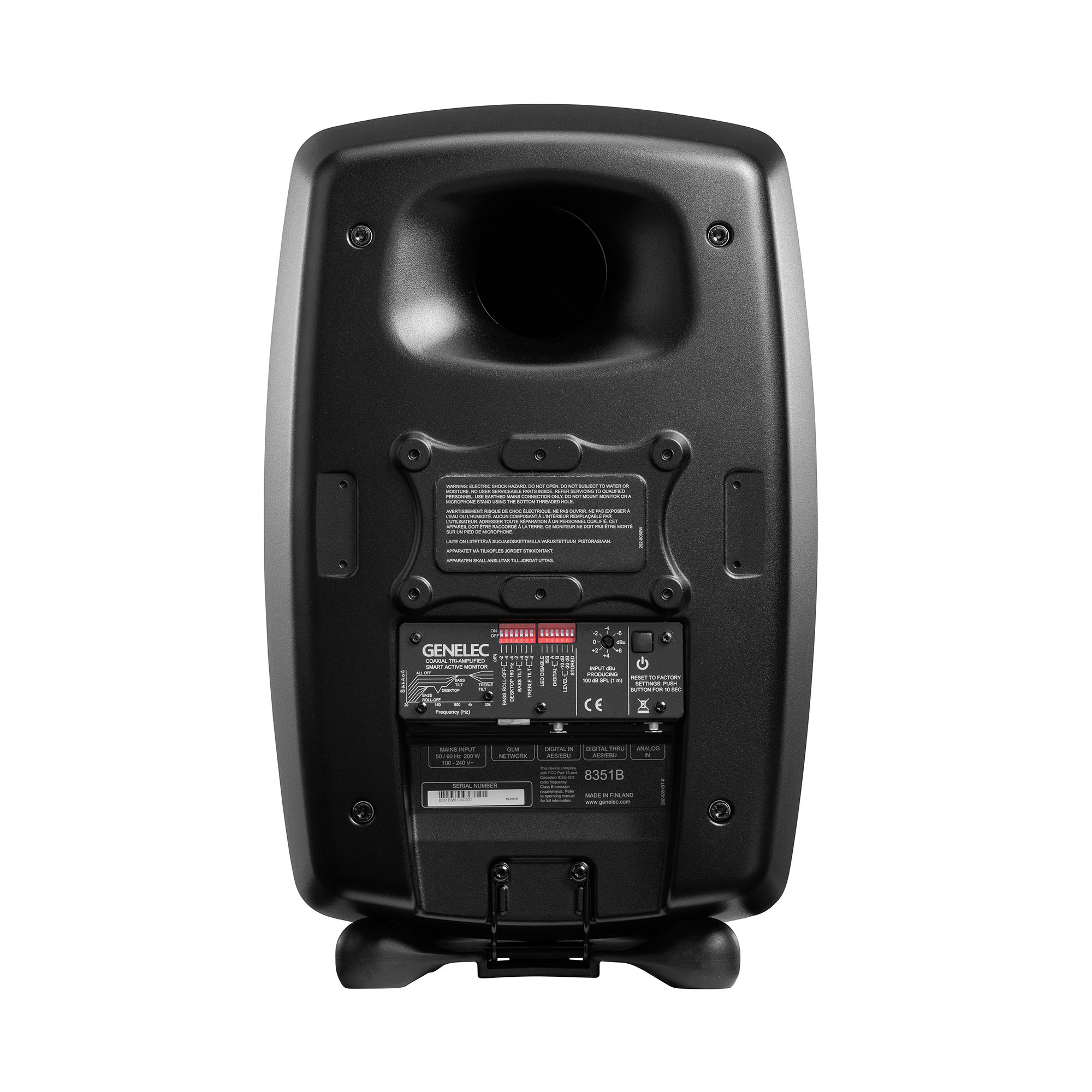

8351B SAM™ Studiomonitori

Smart Active Monitor (SAM™)

Minimum Diffraction Coaxial (MDC™)

SPL
113 dB

Taajuusvaste
32 Hz - 43 kHz (-6 dB)

Mitat
H 452 x W 287 x D 278 mm, Iso-Podin kanssa™ (muunna tuumiksi)

Teknistä etumatkaa
8351-tarkkailukaiuttimen keskeisempiin teknologioihin kuuluvat Minimum Diffraction Coaxial (MDC™) -koaksiaalielementti Maximised Directivity Control Waveguide (MaxDCW™) -suuntain ja sen takana olevat Acoustically Concealed Woofers (ACW™) -bassoelementit. 8351:n akustisesti koaksiaalinen rakenne mahdollistaa erittäin hallitun suuntaavuuden poikkeuksellisen taajuuskaistalla ja kaiutin on mahdollista sijoittaa sekä pysty- että vaaka-asentoon. AutoCal™-kalibrointijärjestelmä kompensoi automaattisesti jokaisen ohjausverkkoon kytketyn kaiuttimen tason, viiveen ja taajuusvasteen akustiseen ympäristöön sopivaksi.

Ammattilaisen työkalu
8351 edustaa alan kehittyneintä ja nykyaikaisinta elektroakustista suunnittelua. Se soveltuu erinomaisesti studio- ja jälkikäsittelykäyttöön, audiotyöasemasovelluksiin, radio- ja TV-tarkkaamokäyttöön sekä ulkotuotantosovelluksiin.
Genelec

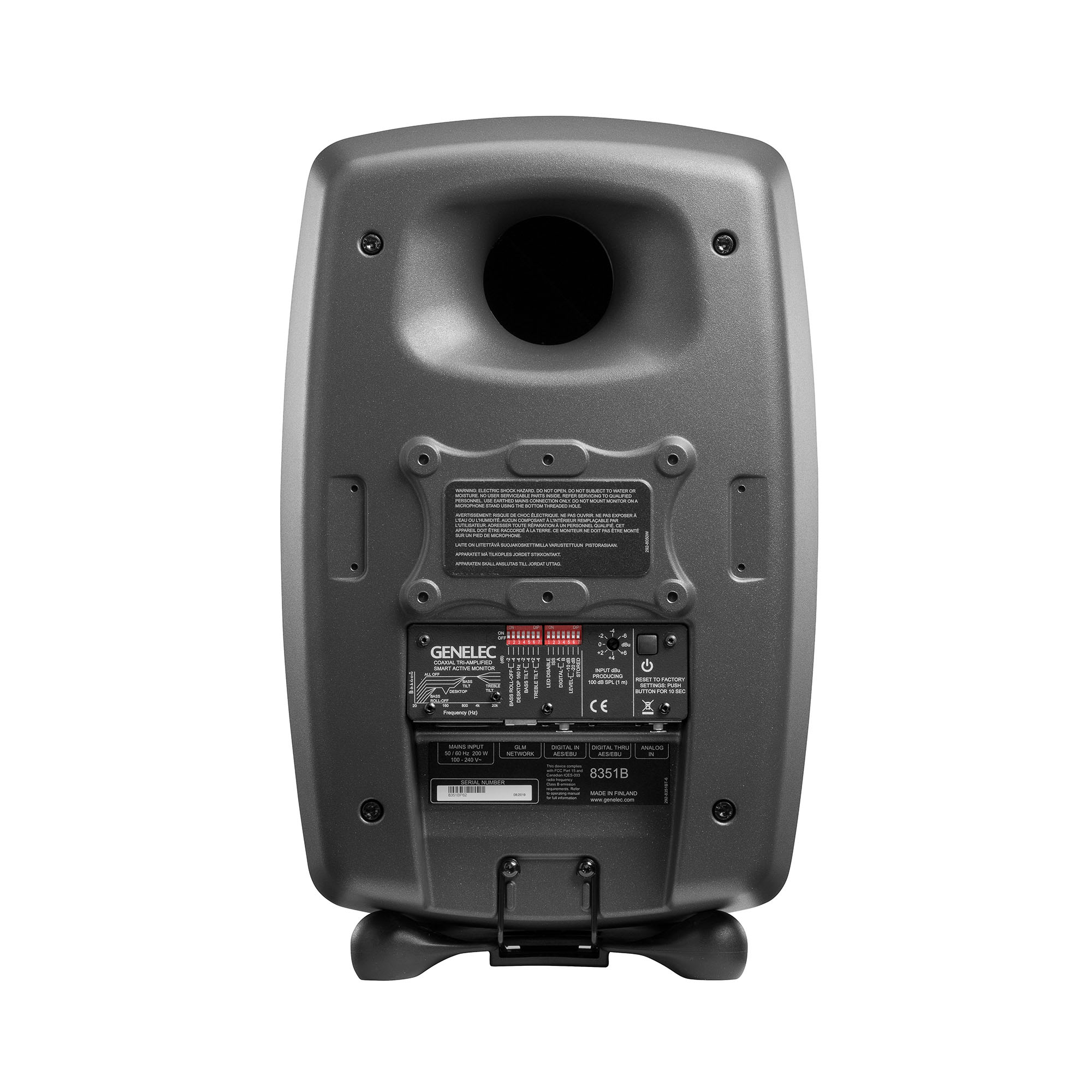

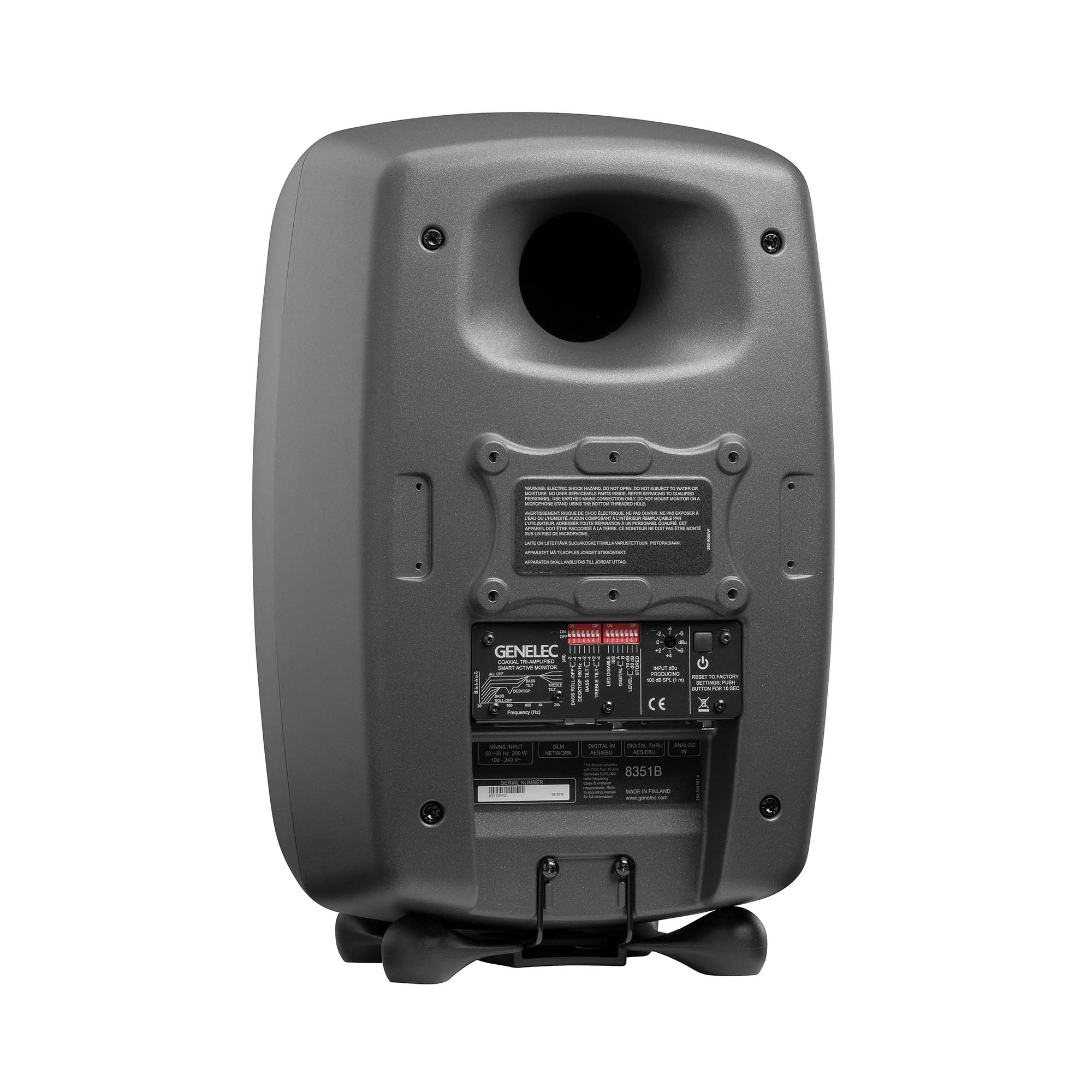

8351B SAM™ Studiomonitori tummanharmaa

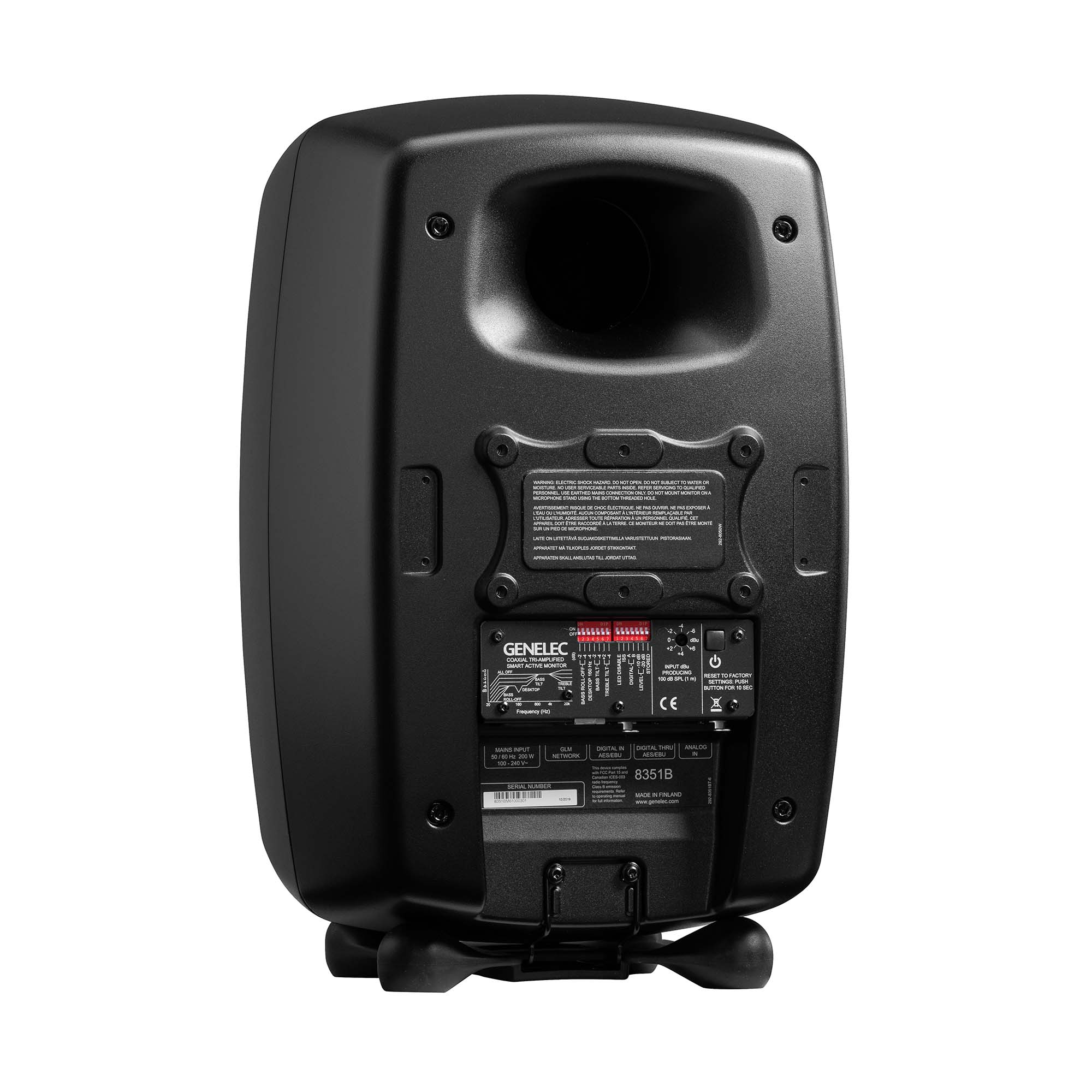

8351B SAM™ Studiomonitori musta

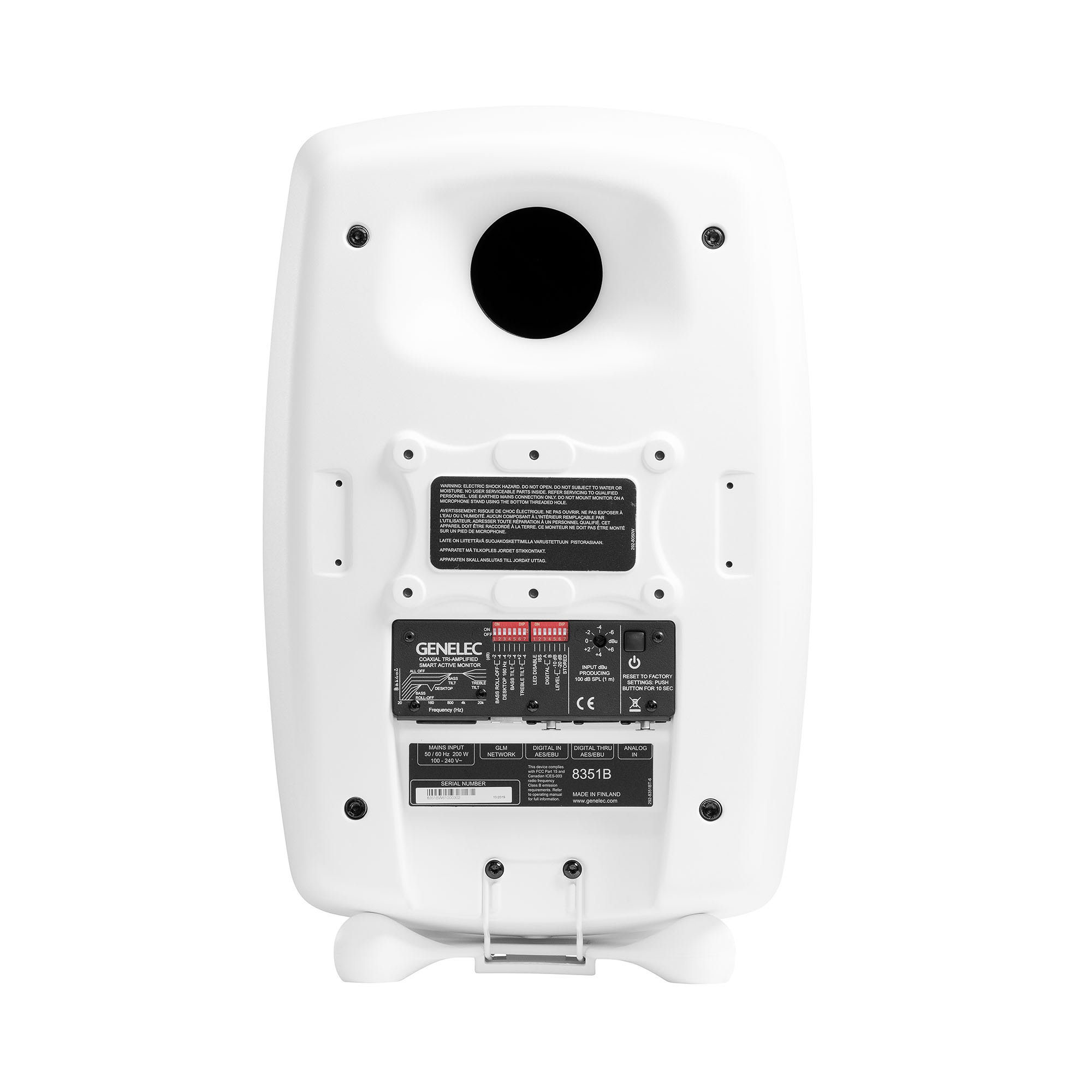

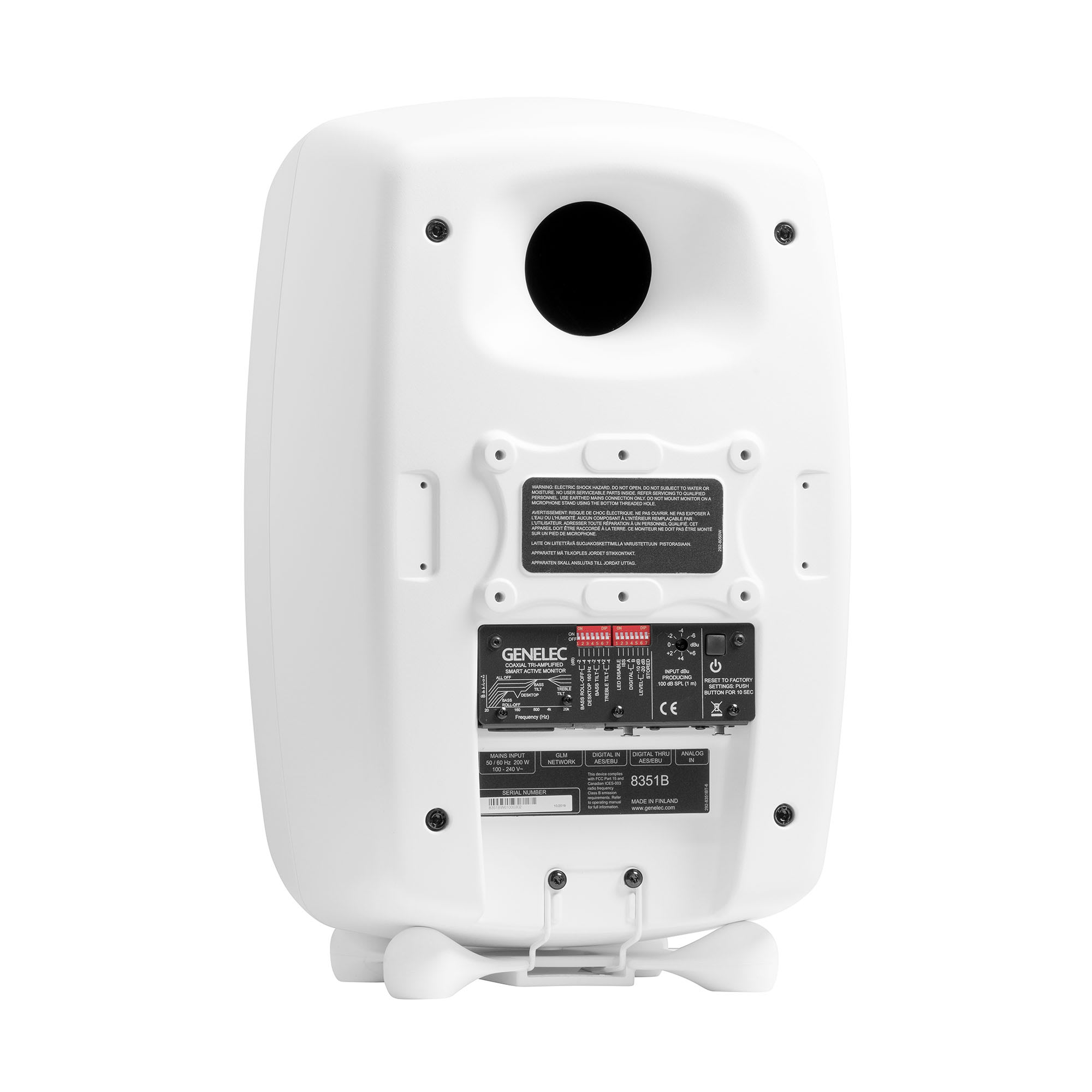

8351B SAM™ Studiomonitori valkoinen
1 x 8351B monitori
1 x virtajohto 1,8 m
1 x RJ45 kaapeli 5 m
1 x käyttöohje
1 x The Ones -esite
8351B SAM™ Studiomonitori
Palkinnot

Genelec's The Ones monitors were awarded a "Producto del Año 2017" award by Hispasonic.

Genelec SAM™ Coaxial Studio Monitors 8331, 8341 and 8351, also known as "The Ones", were awarded with the MusicTech Gear of the Year 2017 award in "The Best Monitors" -category.

Genelec SAM™ Coaxial Studio Monitors 8331, 8341 and 8351, also known as "The Ones", were awarded with the MusicTech Gear of the Year 2017 award in "Product of the Year" -category.
Genelecs The Ones monitors were awardede a Beijing International Music & Hi-Fi Show award 2017 in the category of "Most Influential Product".
Genelec's The Ones monitors were awarded a IFTT C&C Award 2017 (International Film and Television Technology Creative & Craft Award).
Genelec's The Ones monitor series was awarded a Super AV Award 2017 in the category of Outstanding Overall Performance.
Genelec SAM™ Coaxial Studio Monitors 8331, 8341 and 8351, also known as "The Ones", were awarded a SOS Global Readers Award 2018 in "Highly Commended" -category.
Genelec's The Ones series monitors were awarded a Resolution Award 2018 in the "Monitoring" category.
Tekniset tiedot

SPL
113 dB

Vahvistimen teho
250 W Basso (Class D) + 150 W Keskiääni (Class D) + 150 W Diskantti (Class D)

Taajuusvaste
32 Hz - 43 kHz ("-6 dB")

Taajuusvasteen tarkkuus
± 1.5 dB (38 Hz - 20 kHz)

Kaiutinelementtien mitat
2 x H 101 x W 218 mm Basso + ⌀ 130 mm Keskiääni + ⌀ 25 mm Diskantti (muunna tuumiksi)

Mitat
H 452 x W 287 x D 278 mm, Iso-Podin kanssa™ (muunna tuumiksi)

Paino
14.3 kg / 31.5 lb

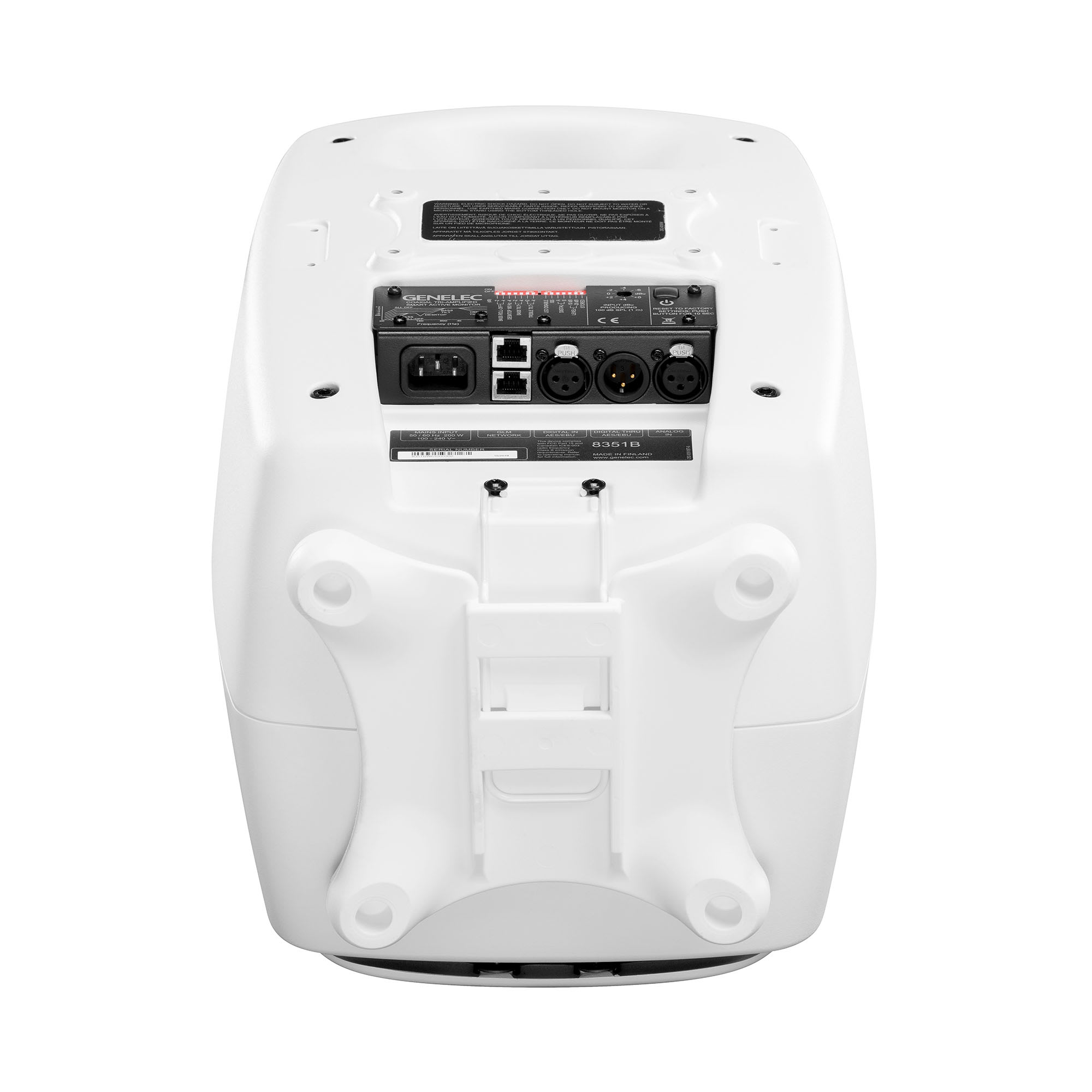

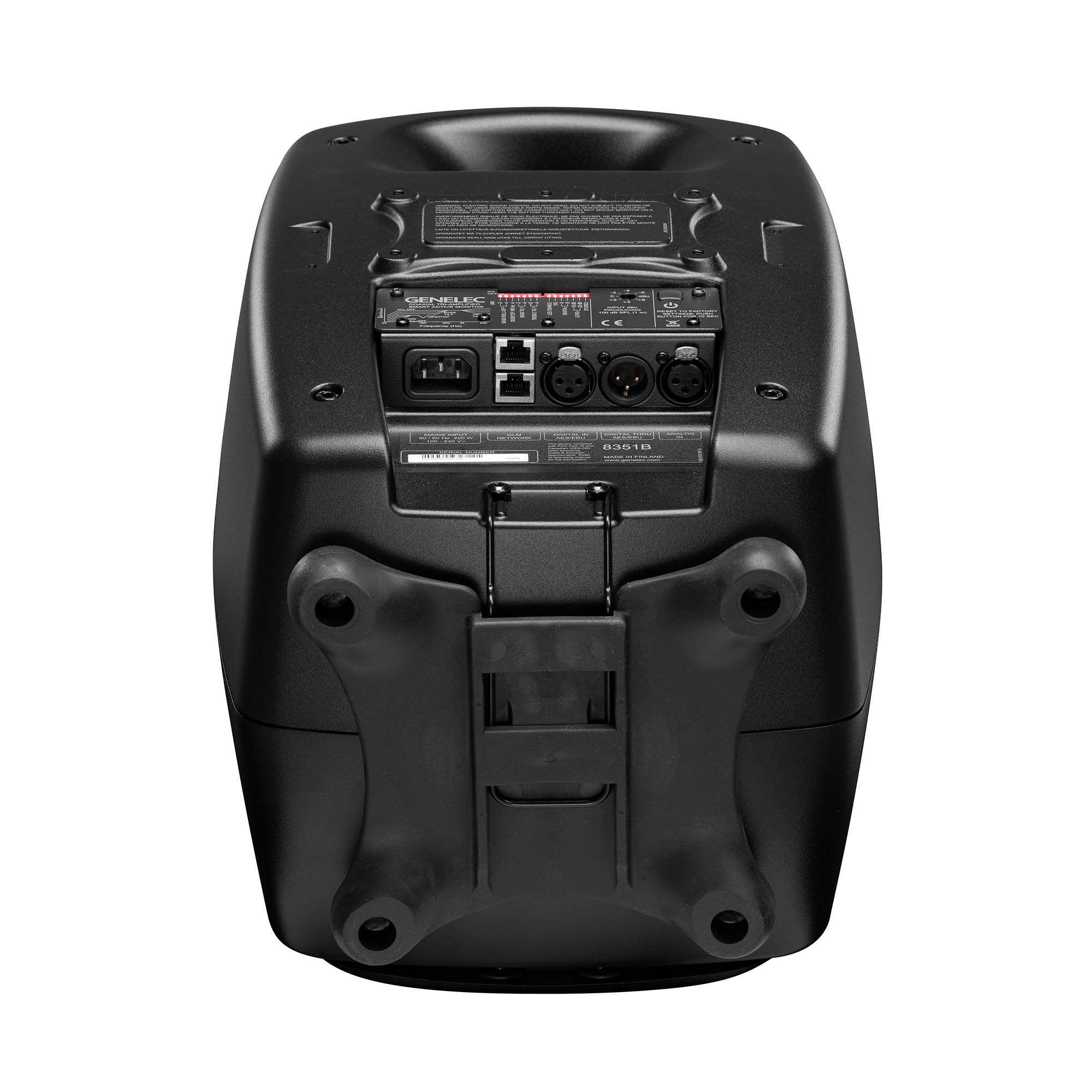

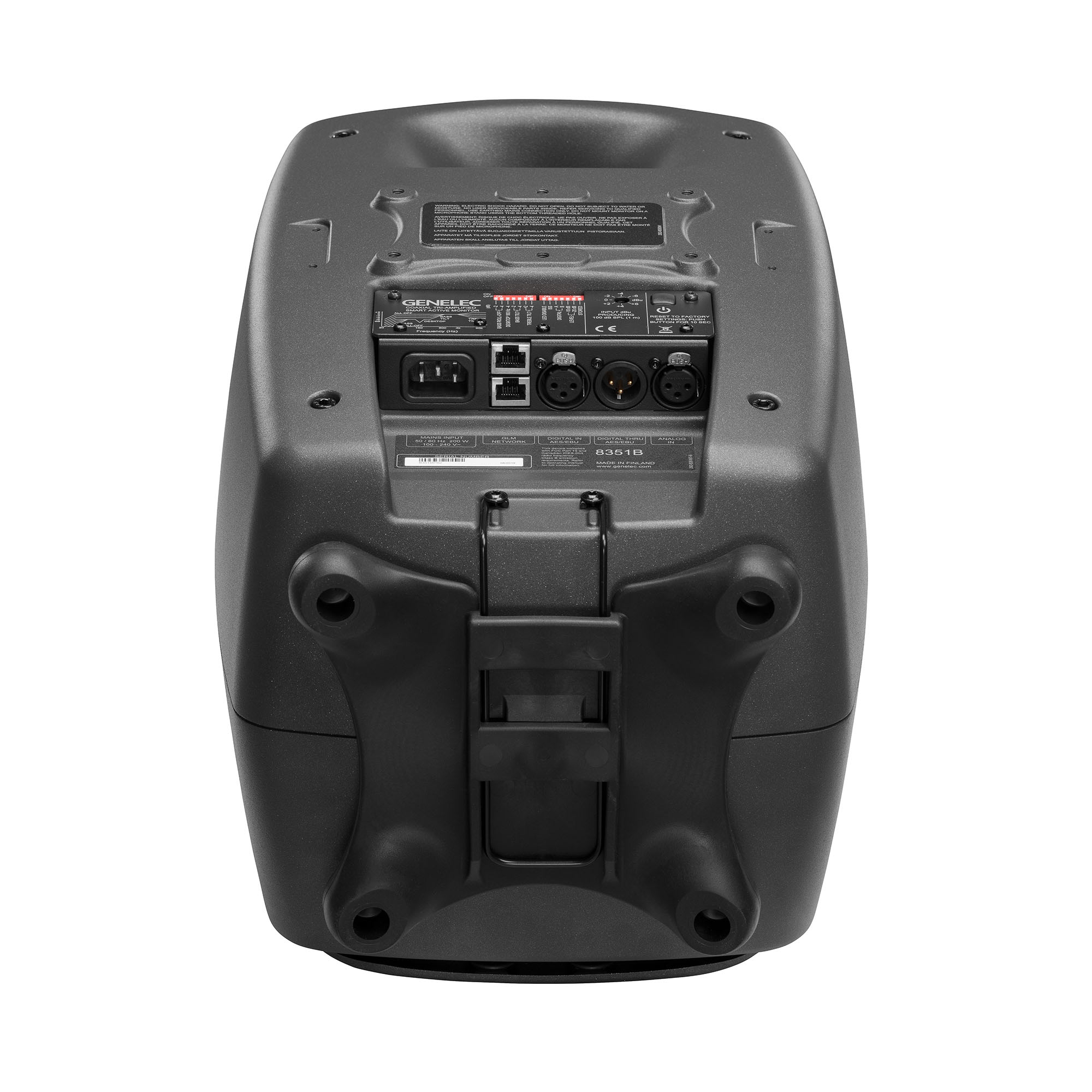

Liitännät
1 x XLR Analoginen Sisääntulo
1 x XLR AES/EBU Sisääntulo
1 x XLR AES/EBU Ulostulo
2 x RJ45 Ohjaus
8351B SAM™ Studio Monitor
Tekniset tiedot
Järjestelmän tiedot
Taajuusvaste
38 Hz - 20 kHz (± 1.5 dB)
Alarajataajuus -6 dB
32 Hz
Ylärajataajuus -6 dB
43 kHz

SPL
Maksimiäänenpaine Maksimiäänenpaineen piikki, kaiutinpari mitattuna musiikkimateriaalilla konsolin päällä 1 metrin etäisyydeltä.
≥123 dB
Hetkellinen maksimiäänenpaine Lyhyen ajan maksimiäänenpaine siniaallolla puoliavaruudessa, keskiarvo 100 Hz - 3 kHz, 1 metrin etäisyydeltä.
≥113 dB
Pitkäkestoinen maksimiäänenpaine Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
≥103 dB
Akustinen pohjakohinataso
Akustinen pohjakohinataso Kaiuttimen oma melutaso 1 metrin etäisyydeltä vapaakentässä (A-painotettu).
≤5 dB
Paino
Paino14.3 kg (31.5 lb)
Mitat
Korkeus
433 mm
Korkeus pöytäjalustan kanssa
452 mm
Leveys
287 mm
Syvyys
278 mm

Kotelo
Kotelomateriaali
Die cast aluminium
Kotelotyyppi
Reflex port
Kaiutinelementit
Kaiutinelementtityyppi
Racetrack
Dual 218 x 101 mm (85/8 x 4 in) obround cones
Määrä
2
Leveys
218 mm
Korkeus
101 mm
Kaiutinelementtityyppi
Coaxial
8351B midrange driver cone (coaxial)
Halkaisija
130 mm
Kaiutinelementtityyppi
Coaxial
8351B treble driver metal dome (coaxial)
Halkaisija
25 mm
Suuntaavuus


Harmoninen särö
Ryhmäviive
Viivästys äänen syntymiseen, mitattuna analogiasignaalitulosta korkeilla taajuuksilla.
GLM Extended Phase Linearity OFF-asennossa (ylempi käyrä)
3.1 ms (analogiatulo)
GLM Extended Phase Linearity ON-asennossa (alempi käyrä)
7.5 ms (analogiatulo)
Genelec ilmoittaa kaiuttimen suorituskykytiedoissa ajan, joka kuluu äänen muodostumiseen siitä, kun sähköinen signaali on saapunut kaiuttimen tuloliittimeen. Tämä aika ilmoitetaan latenssina ja ryhmäviivekäyrän antamana viiveenä ja kaiuttimen aiheuttama kokonaisviive on näiden kahden summa. Jotta saa käsityksen tämän kokonaisviiveen merkittävyydestä, on hyvä tietää, että kaiuttimen siirtäminen 1 m kauemman tuottaa noin 3 ms lisäviiveen.


Vahvistimet
Vahvistimet
250 W Class D
150 W Class D
150 W Class D
Käyttöjännite
100-240 VAC 50/60Hz
Tehonkulutus
ISS-valmiustilassa
≤1 W
Ilman kuormaa
≤16 W
Täysi kuormitus
200 W
Jakosuodin
Liitännät
Sisääntulo Analog signal input connector XLR female (10 kOhm input load impedance).
Sisääntulo XLR-naaras (vastaa standardia IEC 60958-4)
Ulostulo XLR-uros (vastaa standardia IEC 60958-4)
2 x Ohjaus Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Jakotaajuus
Bass/Mid
320 Hz
Mid/Treble
2800 Hz
Tarkempia lisätietoja lisäksi tuoteoppaissa.
Avainteknologiat

Smart Active Monitor (SAM™)

Minimum Diffraction Coaxial (MDC™)

Acoustically Concealed Woofers (ACW™)

Active Crossovers

Directivity Control Waveguide (DCW™)

Intelligent Signal Sensing (ISS™)

Iso-Pod™ Stand

Minimum Diffraction Enclosure (MDE™)

Optimized Amplifiers

Protection Circuitry

Reflex Port Design

Versatile Mountings
Smart Active Monitor (SAM™) älykkäät kaiutinjärjestelmät sisältävät automaattisen kalibroinnin akustiseen ympäristöön.
Kuluneen vuosikymmenen aikana sisällöntuotannon tarve on kasvanut ennätyslukemiin maailmanlaajuisesti. Tämä on aiheuttanut suuria muutoksia tuotantoyksiköiden toimintatapoihin kasvaneen työmäärän suorittamiseksi. Kasvava osa tuotannoista tehdään entistä pienemmissä työskentely-ympäristöissä. Tämä lisää merkittävästi huoneakustisia ongelmia jolloin äänentarkkailun luotettavuus heikkenee. Äänitarkkailijan tulisi pystyä luottamaan aukottomasti kaiutinjärjestelmään, jonka tulee tuottaa värittymätöntä ja särötöntä ääntä käytetystä äänenpaineesta riippumatta.
Huolellinen elektroakustinen suunnittelu toimii perustana kaikille 1200, 8200, 8300, 7200 ja 7300 –sarjojen älykkäille tarkkailukaiutintuotteille. SAM™ järjestelmän poikkeuksellisiin ominaisuuksiin kuuluu muun muassa kalibrointitoiminnallisuus Autocal™, joka mittaa ja sovittaa tarkkailukaiuttimet automaattisesti akustiseen ympäristöön kompensoiden tasoerot, viive-erot, taajuusvasteiden poikkeamat sekä subwoofereiden vaiheet.
SAM™ järjestelmiä ohjataan Genelecin Loudspeaker Manager (GLM™) ohjausverkkoa ja -sovellusta käyttäen, joka mahdollistaa äärimmäisen joustavan ja luotettavan monitorointijärjestelmän luomisen. GLM 3 on intuitiivinen tarkkailukaiuttimien hallintasovellus, joka mahdollistaa jopa 45 SAM™ -tuoteperheen tarkkailukaiuttimen ja subwooferin kytkemisen järjestelmään. Autocal™ automaattisen kalibrointitoiminnallisuuden lisäksi GLM 3 sovellus tarjoaa käyttäjälle mahdollisuuden säätää monipuolisesti tasoja, viiveitä sekä äänenvärisuodattimia. Parametrit ja asetukset voidaan tallentaa sekä tietokoneelle, että myös jokaiseen yksittäiseen GLM™ -ohjausverkkoon liitettyyn tarkkailukaiuttimeen ja subwooferiin. Tällöin ohjausverkkoa ja sovellusta ei välttämättä tarvita varsinaista tarkkailutyötä tehtäessä.
Kaikkia SAM™ järjestelmän tarjoamia toimintoja sekä äänen väriä voidaan säätää käyttäjän tarpeiden mukaisesti. Jopa työskentelytilan ja akustisen ympäristön vaihtuessa SAM™ teknologia auttaa sinua saavuttamaan parhaan mahdollisen ja johdonmukaisesti käyttäytyvän äänentarkkailujärjestelmän, joka tarjoaa neutraalin äänikuvan sekä todella alhaisen särötason.
Genelecin SAM™ -tuoteperhe tarjoaa kattavan, ratkaisukeskeisen ja älykkäästi verkottuvan järjestelmäkokonaisuuden, joka mahdollistaa sekä analogisen että digitaalisen signaalitien käyttämisen erilaisissa työskentely-ympäristöissä.
Minimum Diffraction Coaxial (MDC™) -koaksiaalielementti tuottaa ensiluokkaisen äänikuvan.
Aikaisempien koaksiaaliratkaisujen taajuusvaste on jokseekin rosoinen, mikä johtuu rakenteelle tyypillisistä diffraktio-ongelmista. Koaksiaalirakenne kuitenkin ratkaisee keskiääni- ja diskanttielementtien sijaintieroista aiheutuvat jakotaajuusalueen ongelmat. Näistä lähtökohdista on saanut alkunsa Genelecin Minimum Diffraction Coaxial (MDC™) -koaksiaaliteknologia: Se hyödyntää aikaisempien koaksiaaliratkaisujen edut mutta se myös korjaa niiden vakavia heikkouksia.
Ensimmäinen askel on minimoida keskiäänikartion liikepoikkeamaa, joka tehdään rajoittamalla elementin toistamaa matalien taajuuksien kaistaa. Toinen haaste on välttää diffraktiota aiheuttavat akustiset epäjatkuvuuslinjat. MDC™-koaksiaalielementin perusrakenne koostuu integroidusta keskiäänikalvo – ripustus – diskanttielementti -kokonaisuudesta. Koaksiaalielementin näkyvä osa koostuu keskiäänielementin ulkoripustuksena toimivasta joustavasta pinnasta ja sen keskellä sijaitsevasta kalottidiskanttielementistä. Sisäinen rakenne liittää keskiäänikartion diskanttielementtiin ilman akustista katkoa ja MDC™-elementti liittyy koteloon saumattomasti.
Koska havaittavia akustisia katkoja diskanttielementin ja keskiäänikartion välillä ei ole, myöskään diffraktiota ei synny. Keskiäänikartion profiili on tarkoin optimoitu ja se muodostaa integroidun suuntaimen diskanttielementin akustiselle säteilylle. Elementin ulkoreuna liittyy Directivity Control Waveguide (DCW™) -suuntaimeen, jolla hallitaan keskiäänisäteilijän dispersiota. Taajuusvaste kuunteluakselilla sekä sivukentässä on erittäin sulava, eikä siinä ole poikkeamia. Suuntaavuuskäyttäytyminen on erittäin hallittua.
Mullistava koaksiaalirakenne parantaa äänikuvaa sekä kokonaisäänenlaatua. Se mahdollistaa erinomaisen suoran taajuusvasteen, jonka ansiosta sisällön yksityiskohtien toisto on erittäin erottelevaa ja tarkkaa.
DCW™-koaksiaaliteknologian tärkeimmät ominaisuudet ovat:
- Diffraktiovapaa liitos diskanttielementin ja keskiäänikalvon välissä.
- Diffraktiovapaa liitos keskiäänikalvon ja DCW™-suuntaimen välissä.
- Genelecin kehittämä keskiäänikalvotekniikka – laminaattirakenne, jossa yhdistyvät jäykkä kartio ja elastiset, häviöttömät materiaalit esimerkiksi ulkoripustuksessa
- Keskiäänikalvo- ja ulkoripustusrakenne, joka vaimentaa mahdolliset epälineaarisuudet.
Näiden ominaisuuksien edut:
- Tasaisempi taajuusvaste.
- Elementit käyttäytyvät johdonmukaisesti koko toimintakaistallaan.
- Merkittävästi hallitumpi suuntaavuus kriittisellä taajuuskaistalla.
- Ripustuksen tasapainoinen dynamiikka minimoi akustista säröä.
- Rakenne mahdollistaa etulevyn optimoidun käytön säilyttäen 8000-sarjan muotoilun ja edut.
Acoustically Concealed Woofers (ACW™) -bassoelementit takaavat hallitun suuntaavuuden matalille taajuuksille saakka.
The Ones -kolmitiekaiuttimessa on uudenlaiset Acoustically Concealed Woofer (ACW™) -bassoelementit. Kotelon etulevyn taakse piilotetut elementit säteilevät kotelon päissä olevien aukkojen kautta.
Kahden bassoelementin sijoitus laajentaa akustisesti koaksiaalisen säteilykäyttäytymisen matalille taajuuksille. Kahden toisistaan tietyllä etäisyydellä sijaitsevan bassoelementin järjestelmä käyttäytyy akustisesti matalien taajuuksien suuntaavuuden osalta yhden suuren elementin tavoin. Kahden bassoelementin järjestelmä laajentaa hallitun suuntaavuuden matalammille taajuuksille kotelon etulevyn pituuden sallimissa rajoissa.
ACW™-teknologian ansiosta bassoelementit ja kotelon aukot ovat akustisesti läpinäkymättömiä keskiääni- ja diskanttitaajuuksia toistavalle Minimum Diffraction Coaxial (MDC™) -koaksiaalielementille. Säteilyaukkojen koko on optimoitu suunnitteluvaiheessa ja niiden kaarevuus minimoi säröä.
ACW™-rakennetta hyödynnettäessä koko etulevyn pinta-alaa voidaan käyttää yhtenä jättimäisenä Maximized Directivity Control Waveguide (MaxDCW™) -suuntaimena, joka on integroitu Minimum Diffraction Enclosure (MDE™) -koteloon.
ACW™-teknologia tarjoaa huomattavasti suuremman kaiuttimen matalien taajuuksien suuntaavuuskäyttäytymisen kompaktissa kotelossa. Hallittu matalien taajuuksien suuntaavuus vähentää huoneen aiheuttamia haittavaikutuksia merkittävästi.
Aktiivisessa jakosuotimessa käsitellään linjatasoista signaalia.
Aktiiviset jakosuotimet jakavat audiosignaalin taajuuskaistoihin, jotka ohjataan erillisiin tehovahvistimiin. Vahvistimet on kytketty kyseiselle taajuuskaistalle optimoituihin kaiutinelementteihin.
Aktiivikaiuttimissa käytetään sekä digitaalisia että analogisia jakosuotimia. Genelecin digitaalisissa aktiivijakosuotimissa on myös muita signaalinkäsittelytoiminnallisuuksia, kuten elementtien suojaus, lentoaikakompensointi ja taajuuskorjaus.
Genelecin analogisissa aktiivijakosuotimissa perustuu elektronisiin komponentteihin, jotka käsittelevät matalatasoista signaalia ennen tehovahvistusta. Aktiiviset jakosuotimet eroavat toimintaperiaatteeltaan passiivisista jakosuotimista, joissa käsitellään voimakkaita signaaleja, suurta virtaa ja toisinaan myös suurta jännitettä.
Tyypillisessä kaksitiekaiuttimessa tulosignaali jakosuodatetaan kahdelle erilliselle tehovahvistimelle, joista toinen ohjaa bassoelementtiä ja toinen diskanttielementtiä.
Aktiivisella jakosuodinteknologialla on useita etuja:
- Elementin sähködynaamiset muutokset eivät vaikuta taajuusvasteeseen.
- Signaalia voidaan säätää joustavasti käytettävän elementin ominaisuuksien mukaisesti.
- Jokaisen elementin tulosignaali prosessoidaan ja vahvistetaan yksilöllisesti. Yksittäisten elementtien signaalit eivät häiritse toisiaan, mikä vähentää keskeismodulaatiosäröä ja yliohjausongelmia.
- Elementtien välisiä herkkyyseroja voidaan kompensoida.
- Elementin ominaisuuksiin liittyviä taajuus- ja vaihevasteen poikkeamia voidaan kompensoida halutulla päästökaistalla.
- Aktiivinen jakosuodin mahdollistaa lisäksi taajuusvasteen säätämisen sekä kaiuttimen optimoinnin kaiutinjärjestelmään ja erilaisiin kuunteluympäristöihin ilman ulkoisia taajuuskorjaimia. Tuloksena on yksinkertainen, luotettava, tehokas, tarkka ja johdonmukaisesti käyttäytyvä aktiivikaiutinjärjestelmä.
Directivity Control Waveguide (DCW™) -suuntain tuottaa tasaisen taajuusvasteen laajalle kuuntelualueelle.
Vallankumouksellinen Directivity Control Waveguide™ (DCW™) -teknologia parantaa huomattavasti suoraan säteilevän monitiekaiuttimen suorituskykyä.
Tavoite on sovittaa taajuusvaste ja elementtien suuntaavuus kaiuttimessa. Lopputuloksena saavutetaan erinomainen taajuusvaste sekä kaiuttimen akustisella akselilla että sivusta mitattuna.
Parantunut kontrolloitu suuntaavuus vähentää huoneheijastumia kuuntelupaikalle. Tämä parantaa stereokuvaa ja asettaa vähemmän vaatimuksia huoneakustiikalle.
DCW-teknologia parantaa elementin herkkyyttä jopa +6 dB:ä, mikä mahdollistaa suuremman kokonaisäänenpaineen vähentäen samalla säröä ja parantaen luotettavuutta.
###DCW™-suuntaimen tärkeimmät edut:
- Tasainen taajuusvaste laajemmalle kuuntelualueelle
- Parantunut suoran äänen suhde heijastuneeseen ääneen vähentää tilan vaikutusta lopputulokseen
- Tarkempi stereokuva
- Parantunut elementtien hyötysuhde
- Järjestelmän suurempi maksimiäänenpaine
- Pienentynyt elementtien särö
- Vähemmän kaiutinkotelon reunan aiheuttamaa äänen heijastumista
- Parantunut elementtien luotettavuus, koska saman äänenpaineen tuottamiseen tarvitaan vähemmän tehoa ja pienempi kalvon liikepoikkeama
Intelligent Signal Sensing (ISS™) -valmiustilatoiminto vähentää virrankulutusta.
Genelec kehitti vuonna 2013 Intelligent Signal-Sensing -piirin, joka täyttää sekä ErP-direktiivin vaatimukset että Genelecin omat direktiiviä tiukemmat vastuullisuusvaatimukset.
ISS™-piiri seuraa kaiuttimien signaalinsyöttöä ja havaitsee, milloin signaali on käytössä. Jos ISS-piiri ei havaitse audiosignaalia hetkeen, se asettaa kaiuttimen valmiustilaan, jossa kaiuttimen virrankulutus on alle 0,5 wattia. Kun syöttösignaali havaitaan, kaiutin kytkeytyy päälle itsestään. Kaiutinjärjestelmä alkaa siis säästää sähköä heti, kun työskentely katkeaa.
Jokaisen kaiuttimen taustalevyssä on huonevasteen säätimien vieressä ISS Disable -kytkin. Kun päävirtakytkin on asennossa ON, ISS™-toiminto on oletusarvoisesti päällä.
Jos ISS-toimintoa ei haluta käyttää, se voidaan poistaa käytöstä kääntämällä ISS Disable -kytkin asentoon ON. Tällöin kaiuttimen virransyöttöä ohjataan päävirtakytkimestä.
Päävirtakytkin katkaisee kaiuttimen virransyötön kokonaan.
Mekaanisia värinöitä vaimentava Iso-Pod™ -alusta parantaa äänikuvan tarkkuutta.
Vaikka vapaasti seisovien kaiuttimien alle suositellaan yleisesti tukevia jalustoja, on varsin yleistä että kaiuttimet sijoitetaan suoraan pöydälle tai äänipöydän mittarisillalle. Tällaisesta sijoituksesta aiheutuu kuitenkin haitallisia lieveilmiöitä: Kaiuttimen suuntaus kohti kuulijaa on vaikeaa ja kaiuttimen sekä alustan välille syntyy haitallisia mekaanisia värinöitä. Kaiuttimen ollessa pöydällä työtasosta aiheutuu heijastumia, jotka aiheuttavat kampasuodinilmiöstä johtuvaa taajuusvasteen vääristymistä.
Genelec on kehittänyt näiden ongelmien ratkaisemiseksi tehokkaan ja käytännöllisen Isolation Positioner/Decoupler (Iso-Pod™) -alustan, joka kiinnitetään jousella kaiuttimen alumiinikoteloon. Alusta on valmistettu joustavasta kumimaisesta materiaalista. Tukevasti sekä pysty- että vaaka-asentoon Iso-Pod-alustan päälle asettuvaa kaiutinta voidaan kallistaa ±15 asteen kulmaan. Kaiuttimen akustinen akseli voidaan kohdistaa tarkasti kohti kuuntelijaa säätämällä kaiuttimen kulmaa Iso-Pod-alustan päällä.
Mekaaniset eristys- ja vaimennusominaisuudet vähentävät tukipinnoista syntyvän haitallisen värähtelyn aiheuttamaa keskiäänen värittymistä.
Innovatiivinen Iso-Pod™-alusta on oleellinen osa Genelecin kaiutinmuotoilua ja se tarjoaa huomattavia käytettävyyteen sekä äänenlaatuun vaikuttavia etuja.
Minimum Diffraction Enclosure (MDE™) -kotelo tuottaa värittymättömän äänen.
Etulevyn akustisista epäjatkuvuuskohdista syntyvä diffraktio on tyypillinen vapaasti sijoiteltavan kaiuttimen ongelma. Kotelon terävät kulmat aiheuttavat heijastuksista johtuvia toisioäänilähteitä, jotka värittävät ääntä ja heikentävät äänikuvan tarkkuutta.
Parantaakseen vapaasti sijoiteltavan kaiuttimen taajuusvasteen sekä tehovasteen tasaisuutta, Genelec on kehittänyt innovatiivisen Minimum Diffraction Enclosure (MDE™) -kaiutinkotelon, jossa on kaarevat sivut sekä pyöristetyt kulmat. Poikkeuksellisen tasaisen taajuusvasteen lisäksi kotelorakenteella saavutetaan erinomaiset äänikuvaominaisuudet.
Kompaktin ja tyylikkään ulkoasun saavuttamiseksi kotelon materiaaliksi on valittu painevalettu alumiini, joka mahdollistaa kotelon kokoon suhteutettuna suuren sisätilavuuden bassoelementin herkkyyden maksimoimiseksi. Alumiini on kevyttä, jäykkää ja hyvin vaimentavaa, joten se on erinomainen materiaali ohutseinäisen ja akustisesti "kuolleen" kotelon valmistamiseen. Alumiinikotelo suojaa tehokkaasti elektromagneettiselta säteilyltä ja se toimii myös vahvistimien jäähdytyselementtinä. Kotelo valetaan kahtena kappaleena, jolloin se pystytään avaamaan helposti esimerkiksi huoltoa varten.
Directivity Control Waveguide (DCW™) -suuntain integroidaan MDE™-koteloon hallitun suuntaavuuden saavuttamiseksi. Vakiosuuntaavuuden alarajataajuus määräytyy suuntaimen koon perusteella, jolloin suuremmalla suuntainpinta-alalla saavutetaan hallitumpi suuntaavuuskäyttäytyminen. Hallittu sivukenttäsäteily mahdollistaa suuren käyttökelpoisen kuuntelualueen, mikä on erittäin tärkeää monikanavaisessa äänentarkkailussa. Hallittu suuntaavuus vähentää myös rajapintaheijasteiden merkitystä, jolloin monitorointijärjestelmä toimii johdonmukaisesti erilaisissa akustisissa ympäristöissä.
Elementtikohtaisesti optimoidut tehovahvistimet.
Elektroniset jakosuotimet jakavat audiosignaalin taajuuskaistan osiin, jotka voidaan ohjata erillisiin vahvistimiin. Vahvistimet on liitetty kyseiselle taajuuskaistalle optimoituihin muuntimiin.
Tyypillisessä kaksitiekaiuttimessa aktiivinen jakosuodin tarvitsee kaksi vahvistinta: yhden bassoelementille ja toisen diskanttielementille. Vahvistimet liitetään suoraan aktiivikaiuttimien elementteihin, jolloin vahvistimien kuormitus on tunnettu ja yksinkertaisempi. Jokaisella elementtikohtaisella vahvistimella on vain rajallinen taajuusalue, jota se vahvistaa (vahvistin sijoitetaan aktiivisen jakosuotimen taakse), mikä yksinkertaistaa rakennetta.
Aktiivisella rakenteella on useita etuja:
- Vahvistimet liitetään suoraan kaiutinelementteihin, mikä tehostaa vahvistimien elementin äänikäämin vaimennuksen hallintaa ja vähentää dynaamisten muutosten esiintymistä elementin sähköominaisuuksissa. Se saattaa parantaa järjestelmän siirtymävastetta.
- Vahvistimen lähtövaatimukset ovat pienemmät. Kun energiaa ei mene hukkaan passiivisen jakosuotimen komponenteissa, vahvistimen tehovaatimukset ovat huomattavasti pienemmät (jopa puolta pienemmät joissakin tapauksissa) ilman, että kaiuttimen akustinen teho heikkenee. Tämä saattaa pienentää kustannuksia ja parantaa äänenlaatua ja järjestelmän luotettavuutta.
- Kun vahvistimen ja elementin välissä ei tapahdu hävikkiä, saavutetaan äärimmäinen akustinen tehokkuus.
- Aktiivinen teknologia pystyy tuottamaan ylivoimaisen äänentoiston suhteessa kokoon ja matalaan alarajataajuuteen.
- Kaikki kaiuttimet toimitetaan tehtaalla sovitettuina järjestelminä (vahvistimet, jakosuotimet ja kotelo-elementtijärjestelmät).
Yliohjauksen suojapiiri takaa turvallisen käytön ja elementtien pitkäikäisyyden.
Kriittisissä audiotuotantoympäristöissä on ratkaisevaa, että monitorointijärjestelmä on luotettava ja aina käytettävissä. Yksi tärkeimmistä syistä Genelecin menestykseen lähetystarkkaamokäytössä on tuotteidemme luotettavuus. Luotettavuuden takeena on sisäinen suojapiiri, joka on ollut kaikissa tuotteissa vuodesta 1978 lähtien.
Suojapiiri ehkäisee elementtien vikatiloja havaitsemalla signaalitasoja. Mikäli signaalissa esiintyy yhtäkkisiä piikkejä tai jatkuvia liian korkeita tasoja, suojapiiri laskee signaalin tasoa automaattisesti. Suojapiirin toiminta ei luonnollisestikaan vaikuta äänenlaatuun millään tavalla työskenneltäessä kaiuttimen määritellyissä käyttöolosuhteissa. Se vain ehkäisee signaaleja rikkomasta kaiutinta.
Suojapiirin ominaisuudet ja edut:
- Laskee signaalin tasoa tarvittaessa (esimerkiksi kun elementin äänikäämin lämpötila saavuttaa turvarajan), mikä parantaa kaiuttimen luotettavuutta merkittävästi.
- Jokaisen kaiuttimen ja alabassokaiuttimen sopiva suojapiirirakenne sallii järjestelmän äänitason maksimoimisen.
Edistynyt refleksiputken muotoilu parantaa bassotoiston ulottuvuutta.
Genelec käytti bassorefleksirakennetta jo ensimmäisessä tarkkailukaiuttimessaan S30:ssa vuonna 1978. Genelec on siitä lähtien tutkinut ja kehittänyt refleksiputken suorituskykyä sekä tehokkuutta. Kehitystyön tavoite on ollut parantaa bassotoiston ulottuvuutta ja äänenpainekapasiteettia erinomaisen matalien taajuuksien artikulaation ja tarkkuuden tuottamiseksi.
Sekä bassoelementti että refleksiaukko vaikuttavat refleksikotelon kokonaissäteilyyn. Suurin osa säteilystä on lähtöisin elementistä, mutta refleksikotelon resonanssitaajuudella elementin liikepoikkeaman amplitudi on pieni, jolloin suurin osa säteilystä tulee aukosta.
Virtausnopeuden minimoimiseksi putken poikkipinta-alan täytyy olla suuri. Kaiutinkotelon koko rajoittaa usein refleksiputken pituutta.
Pitkä kaareva refleksiputki maksimoi ilmavirtauksen, jotta kaiutin pystyy tuottamaan syvän bassotoiston ilman kompressiota. Putki päättyy leveään pyöreäreunaiseen aukkoon, joka sijaitsee kotelon takana minimoiden putken virtausääniä ja tuottaen erinomaisen bassoartikulaation.
Putken kaareva muoto on tarkoin suunniteltu ja se vähentää virtausääniä, kompressiota ja säröä. Putken sisäpään muotoilu minimoi suorille refleksiputkille tyypillisiä yskähdysääniä ja turbulenssia.
Huolellisesti suunniteltu refleksiputken rakenne vähentää bassoelementin liikepoikkeamaa ja parantaa matalien taajuuksien toiston lineaarisuutta sekä äänenpainekapasiteettia.
Monipuoliset kiinnitysvaihtoehdot soveltuvat useimpiin asennusratkaisuihin.
Genelecin kaiuttimissa on monipuoliset ripustusmahdollisuudet, jotka tekevät asennuksesta helppoa kaikissa kohteissa. Oikein sijoitetut kaiuttimet käyttäytyvät ihanteellisesti erilaisissa käyttöympäristöissä.
Laaja lisävarustevalikoimamme ja painevalettujen alumiinikoteloiden takalevyihin integroidut kiinteät M6-kiinnityspisteet tarjoavat ratkaisun useimpiin asennustilanteisiin. Pienissä kaiutinmalleissa kotelon pohjassa on 3/8-tuuman kierreinsertti, jota käyttäen kaiutin voidaan asentaa tukevaan mikrofonitelineeseen tai jalustaan. Suuremmissa ja painavammissa malleissa on M10-kiinnityspisteet. Lattiatelineisiin on saatavilla myös mallikohtaiset Iso-Pod jalusta-adapterit, joiden avulla saavutetaan kattavat säätömahdollisuudet sekä hyvä mekaaninen eristys kaiuttimen ja jalustan välille.
Näiden ominaisuuksien ansiosta tuotteitamme käytetään nykypäivänä ammattikäyttökohteiden lisäksi sekä julkistiloissa että kotikohteissa kaikkialla maailmassa.
Referenssit
The recent renovation of JMC Academy’s Sydney campus has seen two of its studios equipped with Genelec Smart Active Monitoring solutions. The new studios needed to give JMC’s students the experience of working with high-end professional equipment while also providing the longevity required by educational institutions.
JMC’s Sydney campus studios were fully redesigned from the ground up by architect Shaun Carter and interior designer Julie Niass, from architectural firm Carter Williamson. The renovation required the multifunction Studio A and the adjacent Studio C to have both surround and stereo monitoring configurations. Acoustic engineer Glenn Leembruggen of Acoustic Directions specified Genelec’s ‘The Ones’ series for the studio redesign and, with the help of Genelec’s Australian distributor Studio Connections, was able to deliver a quality design solution.
being able to automatically calibrate the monitor to sound neutral within any given room is a real benefit.
Having previously relied on a pair of 20-year-old 1034As in Studio A, JMC was aware of Genelec’s longevity. Centring around a 48 channel SSL Duality Console, the design team opted for 8361A monitors to be soffit-mounted into the wall in the LCR positions, with a pair of 8351Bs straddling the console bridge as stereo nearfields. Supporting these are 8340As for the rears and a 7360A for the sub, resulting in a fully independent 5.1 surround system. “For students to work on post-production video mixes or record a full band, Genelec monitors offer an amazing sonic performance,” says Paul Newcomb, Business Development Manager at Studio Connections.
Studio C was ultimately fitted out with a pair of Genelec 8351Bs, also seamlessly soffit-mounted into the wall and reproducing every subtle nuance of the music being heard in incredible detail. “The music seemed to float mid-air like a transparent three-dimensional puzzle,” adds Newcomb. “Robust and durable, they were able to perform at their breath-taking best and sounded fantastic.”
Due to the diversity of mixes and applications in each studio, the design team calibrated the entire installation with Genelec’s GLM loudspeaker management software, fully optimising every monitor for the room and allowing users to switch between monitors and maintain precise control of listening levels in each studio. “GLM always plays a major role in the sound of the monitors,” Newcomb explains. “Each space is different, and being able to automatically calibrate the monitor to sound neutral within any given room is a real benefit. The flexibility to set up and store groups, settings and listening positions is extraordinary – Genelec is definitely in a class of its own with this technology.”
JMC have provided their students with a great opportunity to learn their craft using monitors which tell the truth, sonically.
The final result has impressed the team at JMC as they’re now able to offer a space that audio engineers and producers are happy to work in. The studios boast an inspiring, world-class atmosphere, allowing students to access real-world experiences of audio engineering and production during their training.
“For students, facilities like JMC Academy are often the first time they get to experience a professional recording environment,” Newcomb concludes. “JMC have provided them with a great opportunity to learn their craft using monitors which tell the truth, sonically. We’re confident that their experience will be a positive one and that working with Genelec will become a partnership that they can trust in for many years to come.”
Multiple GRAMMY®-nominated producer engineer Jeff Balding, known for his work with a wide array of artists including Eagles, HARDY, Thomas Rhett, Carrie Underwood, Blake Shelton, Dan+Shay, Taylor Swift, Shania Twain and Megadeth, recently upgraded his studio and installed an all-Genelec 9.1.4 Dolby Atmos® immersive-sound system. Located in the heart of Nashville’s Berry Hill recording community, Balding’s new studio features a wide array of Genelec Active Monitors. Specifically, the horizontal array comprises nine Genelec 8351 Smart Active Monitors™ for L-C-R and surrounds (including two for wide coverage) and four 8331A monitors above the mix position acting as the overhead array, with two 7370A subwoofers handling bass management as well as the LFE.
“My interest in converting the studio to an immersive environment was spurred with Apple announcing that they’re diving into immersive audio, and considering that everyone has access to binaural mixes, immersive audio struck me as something that is here to stay, and it's something I wanted to be a part of,” stated Jeff Balding. “On top of all that, I’ve always tried to make stereo mixes more 3D, so this is a very instinctive format for me. A Dolby Atmos setup is an environment to hear in that perspective, and that was a big interest for me. It was an opportunity that I thought I should seize.”
When it came time to make a decision on what monitors to employ for his new immersive studio, Balding says the decision was easy. “I was looking for a speaker system not only that sounds great, but one that had an ease of getting consistency between speakers. It had to be an amplified speaker with the technology to manage the system. Genelec came to mind immediately, specifically with its GLM software for set-up and control. Ultimately, it delivers ease of use on top of the sound I wanted. I’m very familiar with Genelecs; I’ve been using Genelec 1031s for years, and then when The Ones came out, I stepped up to 8351s and a sub for stereo. So then, when I went immersive, I just expanded that system. I’m extremely comfortable with Genelec and happy with how it translates.”
Balding employed the GLM™ (Genelec Loudspeaker Manager™) software to help in the management of the immersive monitoring. “GLM is an integral part of my setup,” stated Balding. “I’m coming out of my I/O’s AES outputs and feeding the speakers’ AES inputs. So everything stays in the digital realm. The GLM software is key to flexibility and control of the Genelec system.”
As immersive production is a new and evolving realm, Balding checks his work a number of different ways to make sure the final product translates to a wide variety of playback sources. “I check the mixes not only on the Genelecs, but also on different components from Apple AirPod Max headphones to their spatial earbuds to regular headphones. And then, bouncing out an MP4 is currently our way of making a very close check of how the mix will sound when rendered by Apple,” said Balding. “You really have to just cross-reference everything. In a lot of these situations, there’s a stereo mix already out there or being released alongside the immersive mix. So, you have to make sure that you’re translating and conveying what the stereo mix delivers to the consumer, musically and emotionally, to make sure they feel like they're experiencing the same record when they hear the Dolby Atmos mix. It’s a complicated process, as listeners don’t necessarily always know which mix they’re hearing, because it might depend on the device, the software, the headphones, user settings or other factors. But whichever mix they are hearing, the experience must shine through. There’s a lot of QC that goes into immersive production. That’s a big part of the time involved in doing these mixes. It’s a similar process to something we’ve done for decades: doing a mix on a set of really nice studio monitors and then going, ‘Okay, how’s this going to sound in the car and on a boombox and whatever else the consumer plays it on?’ It’s basically the same process, just more intense because there’s a lot more going on when you fold down the immersive mix and compare it to stereo binaural.”
Currently Balding is working on a wide variety of projects with immersive mixes for Blake Shelton, Train, Thomas Rhett and a host of others. When asked if he was having fun mixing in immersive, Balding replied, “Oh man, I love this format, and I love mixing in immersive. I go back to what I said earlier: in my opinion, this is how you really want to experience music. And it’s how I want to create music as well. I look forward to coming in to the studio every day, because I feel like the creative playground is so much larger, and that excites me. In terms of both space and tonality, there is just so much at your fingertips you can do with an immersive project. Some may have a hard time adjusting to the format, but for me it’s a perfect marriage.”
“And I could not be doing what I do without the support from Genelec,” he continues. Genelec’s customer support has been unbelievable through all this. They helped me get up and running quick, right when I needed it. When the lockdowns started to subside, Genelec brought together everything needed to get me in motion quickly; I had immersive projects sitting at the door waiting to get in, and I needed to get to work. Genelec was right there in step with it all, making sure what needed to happen, happened.”
Jeff Balding, pictured in his newly upgraded studio featuring an all-Genelec 9.1.4 Dolby Atmos® immersive-sound system (photo by CJ Hicks)
Outside the gaming world, Yasunori contributes to a diverse range of projects, including music for TV, movies, and anime, whilst providing written material and production expertise for well-known artists, both in Japan and internationally.
Despite the diversity of his work, he’s very willing to share his views about his career highlights, saying that “I feel my work for Square Enix is my best, including Chrono Trigger, Xenogears, and many more of their titles.” He’s also worked with other game companies, gathering credits for more than 60 game soundtracks in his career, comprising of hundreds of songs altogether.
At the core of Yasunori’s whole operation is Procyon Studio, expertly set up with a Genelec Smart Active Monitoring system comprising five 8351B three-way coaxial monitors and two 7370A subwoofers, all calibrated with a GLM kit. Yasunori conceptualised the studio’s wooden environment as a way to feel close to nature and provide a large space with ample options for positioning his equipment. Occasionally, he moves his monitors to his second room, for example when recording orchestral parts in his main room. He feels that GLM calibration software is vital in these moments, telling us that “I can use GLM to listen in my other space with the same feeling I experience in my main room.”
Watch our exclusive video for the rest of Yasunori’s thoughts about optimal studio monitoring.
For more information about Yasunori Mitsuda visit:
PROCYON STUDIO: www.procyon-studio.co.jp Twitter : @YasunoriMitsuda
“I was doing an album with Roger Daltrey in Metropolis Studios, with mixes done by Michael Brauer, and they had just got the new Genelecs in,” recalled Eringa. “When we got the mix ready and played it on them and turned it up, I said, ‘Oh my goodness, these sound amazing!’ and that’s what started my ‘I’m going to need to do this’ kind of thinking! I thought I knew what to expect but then when I heard them, I thought ‘this is a whole different game – this is brilliant!’ I could hear everything so pinpoint and clear, and the bottom end was just so solid. I was definitely ‘in’ from the first listen.”
While hearing them in Metropolis was a positive first experience, bringing them in to his own Electric Daveyland studio would be a different matter. “I’m lucky enough to be friends with Andy Bensley from Genelec, and he came here and set them up properly for me with the GLM calibration software,” explained Eringa. “He was like ‘let’s see what your old monitors are doing,’ and you could tell he was definitely surprised by how flat they were. I think he thought ‘we’ve got a bit of a challenge here’, but he just blew them out of the water, obviously.
I could hear everything so pinpoint and clear, and the bottom end was just so solid. I was definitely ‘in’ from the first listen.
“Andy seems to think that in this room, these speakers without a sub are flat down to 30 Hz which is pretty wide, and I haven’t got enough good things to say about them,” he continued. “I haven’t moved anything by a millimetre. I first had to move a few things around the room that were creating reflections and such, so I’ve just left everything else as it is, because it sounded so good in the first place.”
Having previously used the same studio monitors for so long, the transition to an entirely new setup has provided a unique challenge. “It was a learning curve for sure,” reflected Eringa. “Having worked on one set of speakers continuously for 20 years, I definitely underestimated how easy it would be to change. But I was in the middle of mixing an album at the time, and once I’d got my head around them a week or so later, I started mixing 50% faster! It was amazing – a real game-changer for me.
The main thing for me is that they’ve made my job exponentially easier.
“I was definitely committed anyway, but it’s like a snooker player changing his cue, it doesn’t happen overnight,” he continued. “But then when it clicked, I ended up taking mixes into the house, into the car, and things were just sounding the same – and you can’t put a price on that. They’re great, I really love them.”
As much as Eringa enjoys the sound of the 8351s, the most important element has been the way it has helped him work. “The main thing for me is that they’ve made my job exponentially easier,” he concluded.
It completely fixes every last detail in the room and is therefore at the heart of our mastering process.
“We had never had this type of combined system in the studio before and at first we were a bit unsure about the idea,” admits Axelsson. “But once it was installed, we were completely blown away! The concept of combining the W371 woofer system with ‘The Ones’ coaxial design of the 8351 allowed a free-standing full range system for us, and we are planning to install that type of hybrid more in the future – it completely fixes every last detail in the room and is therefore at the heart of our mastering process.”
The 8351s in Studio 3.
The combined Genelec system created directivity for Axelsson as well as total freedom from negative room influences. “We originally had the Genelec 1038ACs as mains in the mastering room, and this was a great monitor to use for this. We loved the sound of these three-way centre speakers in a stereo setup and we were really happy with them, but then we had a problem with the bass that we couldn’t really fix,” he explains. “So, we decided to get in the W371s, not really thinking it would be the final solution, but after the second calibration was set up and combined with the back wall reflections, it managed to take care of exactly what we needed it to – we had never seen that type of installation work before. We are not disappointed, we love the system!”
The new mastering setup in Studio 2.
To get the best out of the new setup, Axelsson chose to use GLM loudspeaker manager software for both the studio’s final configuration as well as for its day-to-day operation. “I always use the GLM setup,” he explains. “It’s more than a good speaker calibration system, it’s great for comparing levels while we’re mastering as well as finalising little details. We also use it as a monitor controller, especially with the new GLM 4 version, and we always have the reference mic and GLM connected which creates a nice flow.”
The technology surpasses all of our expectations every time, and we are working with an amazing set up.
This new mastering suite is just one example of where Axelsson’s passion for Genelec can be seen. But away from the mastering suite, Genelec monitoring is also seen everywhere throughout the building. In Studio 1, which is primarily used for EdTech’s e-learning projects, 8341 and 1037 three-way studio monitors combine with a 7071 subwoofer. While in Studio 3, PAMA’s music studios, Axelsson has opted for 8010, 8351 and 1234 monitoring solutions.
The Genelec collection in Studio 3.
“Genelec is the standard that we are happy to work around,” says Axelsson. “It is our reference wherever we go. The technology surpasses all of our expectations every time, and we are working with an amazing set up at the moment which is by far the perfect solution for us.”
The gaming company, best known for selling over 2 million copies of ‘Human: Fall Flat in China’ within a week of launch, has opted for Genelec Smart Active Monitors in each of these spaces to deliver a pristine audio experience that helps the developers understand the environment that they are creating.
We found that not only does its smart calibration system provide an enormous advantage, the Genelec brand also has a fantastic reputation in the industry.
“In the early stages of the project planning, we decided to go with the Dolby Atmos monitoring system, so that both production and post production could be carried out,” stated Fang Wan, Audio Director of XD Inc. "After conducting extensive research on similar products, we opted for the Genelec system. We found that not only does its smart calibration system provide an enormous advantage, the Genelec brand also has a fantastic reputation in the industry.”
While Suzhou Pineapple Acoustic Engineering Co., Ltd, designed the acoustics for the Dolby Atmos mixing room and editing suites, the system integration and installation was handled by MusicKing (Shanghai) Cultural Development Co., Ltd. All three editing suites are equipped with 8330 nearfield monitors. For the immersive room, the designers chose the three-way coaxial 8351s for the LCR positions, and 8330s for the surround and overhead channels - with a 7360 subwoofer delivering the lower frequencies.
The entire system has been finely calibrated to produce the most accurate sounds for us to be able to create with confidence.
The new audio production spaces have already proven to be advantageous to XD Inc., providing the 20-person team with the space and technology to research and create the right audio for the games they are working on. The facility has received unanimous praise from the entire audio team, with the monitors proving particularly popular.
“The soundfield is immersive and the positioning is accurate,” reflected Fang Wan on the mixing space. “In addition, it has great resolution and sufficient detail. The entire system has been finely calibrated to produce the most accurate sounds for us to be able to create with confidence.”
Joel has spent the last 10 years playing clubs right across the UK and Europe. Growing up during the peak of the UK Garage era, Joel’s early musical influences included iconic figures like Todd Edwards, MJ Cole and DJ EZ, who continue to influence his musical output to this day.
Joel’s Platinum-selling breakthrough single ‘Sorry’ spent 10 weeks in the UK Top 10 in 2019, peaking at #6, and broke Shazam’s all-time daily record in the UK after receiving over 41,000 tags in one 24-hour period. He has since followed it up with further Platinum hit singles ‘Lonely’, which peaked at #4, and ‘Head & Heart’ featuring MNEK, which scored Joel his first ever UK #1 and is officially the longest-running consecutive #1 record of 2020, after spending six weeks at the top spot.
With his newly released single ‘BED’, Joel join forces with RAYE and legendary dance producer, David Guetta, on a track written to capture the feelings of longing experienced by so many during the pandemic.
Music doesn’t influence my life. It IS my life!
Based in London, Joel’s studio at the Tileyard Complex is equipped with Genelec 8351B smart active monitors and a 7370 subwoofer, while a pair of Genelec 8040 monitors in RAW aluminium finish adorn his home studio.
In this exclusive video you’ll see the depth of Joel’s dedication to his craft, and you’ll understand why he asserts that “Music doesn’t influence my life. It IS my life!”
Grammy-palkittu Morten Lindberg on todellinen edelläkävijä korkealaatuisten immersiivisten musiikkitallenteiden tuotannossa. Perustettuaan vuonna 1992 oman tuotantoyhtiönsä Lindberg Lyd:n, Lindberg aloitti myös 2L-levy-yhtiönsä. Tarkoitus oli erikoistua korkeatasoisten tallenteiden tuottamiseen kansainvälisestä ohjelmistosta norjalaisten säveltäjien ja muusikoiden kanssa. Äänitteiden laadun parantamiseksi Lindberg on uusinut jälkituotantostudionsa monitorijärjestelmän 7.1.4 -kanavaiseen formaattiin Genelecin SAM (Smart Active Monitor) sarjan kolmitiekaiuttimilla ja bassokaiuttimilla.
Lindberg kertoo: “Kun olet kuullut immersiivistä äänitettä, paluu stereoon on todella vaikeaa. Kun aloitin äänitteiden tuotannon 90-luvun alussa, stereo asetti ne rajat joiden sisällä työtä tehtiin. Ei ollut muutakaan. Sitten 2000-luvun alussa tuli surround ja avasi uuden, laajemman äänikuvan. Kun aloimme kokeilla immersiivistä ääniformaattia, odotimme että korkeusulottuvuuden lisääminen vain parantaisi yksityiskohtien erottumista ja resoluutiota. Instrumenteille, musiikin linjoille ja soinnuille käytettävissä olevan tilan lisääntymistä ja niin edelleen. Mutta ei se mennyt niin. Saimmekin tunteisiin vetoavan ulottuvuuden. Kolmannen ulottuvuuden lisääminen äänikuvaan tuotti kymmenkertaisesti voimakkaamman tunnevaikutuksen.”
Lindbergin uudistettu jälkituotantostudio on suunniteltu immersiivisten äänitteiden muokkaamiseen, miksaamiseen ja masterointiin. Sekä Dolby Atmos-, että Auro-3D -yhteensopiva monitorointijärjestelmä käsittää pääasiassa Genelecin “The Ones” -sarjan aktiivikaiuttimia: seitsemän 8351B koaksiaalista kolmitiekaiutinta ja W371A adaptiivista bassokaiutinta normaalikorkeudella, neljä pienempää 8341A -mallia ylhäällä ja 7380A -subwoofer toistamassa LFE-kanavan. Lisäksi yksi 8320A on sijoitettu subwooferin päälle toistamaan mahdolliset yli 120 hertsin taajuudet LFE-signaalista. Näin voidaan varmistua ettei LFE-kanavan sisällöstä jää mitään kuulematta.
“Huomasin että The Ones -malliston koaksiaalinen rakenne tuottaa ällistyttävän hyvän äänikuvan ei vain surround-kanavissa vaan kokonaisuutena, myös korkeussuunnassa, ja toistaa uskollisesti kaikki äänitteen yksityiskohdat. Kaikki käyttämämme The Ones -sarjan kaiuttimet pystyvät toistamaan koko äänialueen, joten W371A-bassokaiuttimien varsinainen tehtävä on ulottua matalille taajuuksille, tuntoaistin alueelle missä koemme äänen enemmän värähtelynä kuin kuuloaistimuksena.”
Lindberg jatkaa: “Koko kehomme on itse asiassa hyvin pitkälle kehittynyt aistikokonaisuus ja kehon kautta välittyvä musiikkikokemus on paljon laajempi kuin perinteinen käsitys äänestä ja kuuloaistista. W371A tarjoaa useita erilaisia suuntaavuusvaihtoehtoja, joista voi olla hyötyä pienemmissä tai akustisesti hankalissa huoneissa, mutta tällaisessa tilavassa ja akustiikaltaan hyvässä huoneessa totesin W371A:n pääkaiuttimien taajuusvastetta mahdollisimman tasaisesti jatkavan ”complementary”-asetuksen tuottavan avoimimman ja luonnollisimman toiston jatkumisen sille alueelle, jossa ääniaallot alkavat tuntua vatsan pohjassa.”
Lindberg käyttää Genelecin GLM-ohjelmistoa kaiutinjärjestelmän kytkemiseen, kalibrointiin ja hallintaan. “Mittaamalla toiston eri kuuntelupisteissä ja eri paikoissa työalueella pystymme optimoimaan kaiutinjärjestelmän varsin näppärästi tässä huoneessa. Erityisen käyttökelpoiseksi huomasin GLM:n joustavuuden kaiuttimien määrän, sijoituksen ja konfiguroinnin kannalta. Lisäksi GLM hallitsee koko kaiutinjärjestelmää. Sen kautta pääsee käsiksi jokaisen kaiuttimen asetuksiin.”
Vaikka kokemus, ammattitaito ja hienoin teknologia ovat tärkeitä työkaluja Lindbergin luovassa työssä, hän ei ole unohtanut todellista tavoitettaan musiikin alalla: “Meille täydellinen äänite on sellainen, joka voi saada sinut itkemään...tai nauramaan. Herättää tunteita.”
Kellariharrastelijasta Suomen ykkösnimille kappaleita säveltäväksi musiikin ammattilaiseksi kasvanut ja myöhemmin myös Saimaa-yhtyeen perustanut Matti Mikkola on nyt reilu 40-vuotias ja asuu Helsingissä.
Etäyhteyden auetessa Matti Mikkolan kotona käy hulina. Mikkolan arki on kokenut isoja muutoksia kuluneen vuoden aikana. Perheenlisäys on laittanut asioita tärkeysjärjestykseen, eikä tuottajalla ole enää varaa hioa biisejä studiolla yömyöhään. Välillä on työskenneltävä jopa säästöliekillä.
Vuonna 2004 Tehosekoittimen hajottua, pienen etsimisen jälkeen, Mikkolasta alkoi tuntua luontevalta tehdä musiikkituottajan töitä artisteille isojen levy-yhtiöiden palkallisena. Mikkola on työskennellyt monien artistien kanssa, joihin kuuluvat esimerkiksi Lauri Tähkä, Kaija Koo, Paula Vesala, Ellips, Laura Närhi ja Jesse Kaikuranta. Yhtenä viimeisimmistä Antti Ketosen radiohitiksi noussut “Olisitpa sylissäni” on osaltaan Mikkolan käsialaa.
Tällä hetkellä Mikkola kuuluu The Fried Musicin katon alla työskentelevään tuottajaperheeseen ja hänen sinapinkeltaisilla seinillä varustetun studion kruunaavat Genelecin pehmeän keltaiset 8351B SAM™ -studiomonitorit. Mikkola kertoo, mikä hänelle on tärkeää musiikin tekemisessä ja miten uudet kaiuttimet ovat vaikuttaneet hänen työskentelyynsä.
Kaiutinvalinnassa Mikkolalle oli tärkeää myös väritys. “Minun piti saada keltaiset! Grafiitinharmaat olisivat olleet liian asialliset studiooni. Minulle studion täytyy olla sellainen lastentarha, leikkimaa, jossa pystyn tavoittamaan oikean mielenmaailman.”
Kaupallisen ja kokeilevan taiteen vastakkainasettelua
Mikkolalle musiikin tekeminen on ikiaikaista kaupallisen ja kokeilevan taiteen vastakkainasettelua. Hänelle tärkeintä on toimia siten, mikä itsestä tuntuu hyvältä.
“Välillä painotan enemmän toista ja välillä toista. Nyt on ollut pitkään vaihe, että teen enemmän omaehtoista musiikkia hittipotentiaalista tai kaupallisesta menestyksestä välittämättä.”
Omaehtoisuus on Mikkolalle henkireikä musiikin tekemisessä, ja häntä ahdistaa ajatus ajautumisesta vain yhteen leiriin.
“Kun alkaa olla enemmän töitä mainoskampanjoiden ja helpostilähestyttävän musiikin kanssa, minulle tulee fiilis, että haluan tehdä jotain todella vaikeaa ja kokeilevaa. Jos taas ympärillä alkaa olla liikaa punaviiniä ja nyrpistelyä, tekee mieleni korostetusti kuunnella ja nauttia iskelmän ja helpon popin kansanomaisuudesta ja yksinkertaisuudesta.”
Kaikki Mikkolan kokema on vaikuttanut siihen, miten hän ajattelee musiikin tekemisestä tänään ja miten sitä tekee. Mikkola on jakanut jo 15-vuotiaana nimikirjoituksia, säveltänyt radiohittejä ja keikkaillut ympäri maan. 1990-luvun Suomessa ei biisejä vielä ruodittu somessa ja TV-haastattelun jälkeen palautetta sai korkeintaan koulun pihalla. Vasta myöhemmin tulivat internet, keskustelupalstat ja sosiaalinen media.
“Hyvine ja huonoine puolineen Tehosekoitin-aika on ollut persoonaani vaikuttava juttu. Olen oppinut esimerkiksi, ettei julkisuus ole pidemmän päälle kovin tavoiteltava asia. Tämä on ohjannut omia valintoja siitä, haluanko olla musiikkialalla taiteilija-kokeilijapuolella vai koko kansan kollektiivitajunnassa.“
“Voin luottaa omiin korviini”
Mikkolan studioon asennetut Genelecin 8351B-monitorit tulivat tarpeeseen. Uusien kaiuttimien myötä studiotyöskentely on nopeutunut. Luottamus Genelecin studiomonitorien kuunteluun ja niiden erottelevuus ovat nopeuttaneet Mikkolan päätöksentekoa ja hän pääsee lähtemään myös kotiin ajoissa.
“Kaiuttimet ovat vähentäneet omaa vainoharhaskitsoilua siitä, onko jokin hyvä vai ei. Voin nyt luottaa omiin korviini.”
Mikkola nostaa esiin monitorien yläpään transienttien erottelevuuden. Hän korostaa, että kolmitiemonitorien kanssa on helppo löytää lokeroita asioille ja ottaa häiritseviä juttuja pois.
“Kappaleessa voi olla akustista kitaraa, shakeria ja rumpujen symbaaleja. 8351B-kolmitiemonitoreilla näiden kaikkien erottelevuus on erinomainen. Kaikille on helppo löytää oma paikka sekä horisontaalisessa kuvassa että taajuusvasteessa.”
”Geneleceillä työskennellessä on tuntunut siltä, kuin kaiutinten päältä olisi otettu muovinen pressu pois”, Mikkola kiteyttää. Hän toteaa myös, että 8351B-monitoreilla basson ja treblen säätö on ollut helpompaa.
Tarpeeksi hifi kaiutin
Genelecin asiantuntijat kalibroivat studiomonitorit keväällä 2019 ja Mikkola on ollut tyytyväinen. Hänellä on tapana kuunnella erästä vanhaa kappaletta, jolla voi testata ja keskittyä kuuntelemaan, onko jokin laite hänen mielestään tarpeeksi hifi.
“Kun kuulin, mihin kohtaan marakassin kaiku on panoroitu, tajusin, että 8351B-kolmitiemonitorit ovat yksityiskohtaiset. Kyllä nämä ovat tarpeeksi hifit!”
Mikkolan ideaali mukavasta taajuusvasteesta on 70-luvun jukeboksissa, josta soi esimerkiksi Mattia ja Teppoa.
“Silloin basson fundamentit ovat 100 ja 200 hertsin välissä. Tykkään, että soundi on lämmin ja läjässä, yläpää on pehmeä ja alapää ei ole sellainen, että saa sydänkohtauksen. Festarisubbarista en tykkää ollenkaan.”
“Kun kuulin, mihin kohtaan marakassin kaiku on panoroitu, tajusin, että monitorit ovat yksityiskohtaiset.”
Muumimusiikkia, konsertteja ja Vain elämää
Tositoimiin uusien kaiutinten kanssa Matti on päässyt jo muutamassa eri projektissa. joista kuitenkin vain osasta hän voi kertoa. Yhtenä ensimmäisistä tuotannoista 8351B-monitoreilla oli Mikkolan ja Alman yhdessä kirjoittama Starlight-kappale. Starlight tehtiin uuteen Muumilaakso-animaatiosarjaan.
Emma Gaalassa 2020 esiintyneen Tehosekoittimen suunniteltu iso, yli kymmenen keikan paluukiertue vaati Mikkolan huomiota myös studiolla. Genelecin studiomonitorit avustivat, kun hän ohjelmoi midillä keikkaversioiden demonauhat.
Elokuisena iltana Musiikkitalolla taltioitu Pyhimys ja Saimaa -konsertin miksaus on myös ehtinyt Mikkolan työpöydälle.
Lisäksi uudet kaiuttimet ovat avustaneet muutaman tulevan Vain Elämää -kauden biisin tuotannossa ja uusia projekteja on jo työn alla.
Uusia projekteja on vireillä. Esimerkiksi Saimaa-yhtyeensä kanssa Mikkola suunnittelee ja säveltää nyt viidettä levyä.
Autokuuntelut ovat historiaa
Mikkola on luottanut pitkään Genelecin kaiuttimiin. Kotoa kirjahyllystä löytyy yhä Genelecin 1019A-kaiuttimet. Mikkola muistelee hymyssä suin, kuinka musiikkiuransa alussa, vielä 90-luvulla oikean kuuntelun löytäminen vaati paljon työtä.
“Ennen studiolla saattoi olla suurien studiokaiuttimien lisäksi myös huonolaatuiset kaiuttimet, joilla pystyi mallintamaan huonolaatuisempaa kuuntelua. Tai tuottajan piti välillä käydä kuuntelemassa kappaleita auton kaiuttimista tai matkaradiosta, jotta pystyi miksaamaan kappaleet myös kuulijoiden korviin sopiviksi. Sitten studiolla tehtiin Genelecillä kirurgiset toimenpiteet musiikille.”
Kaiuttimien kehitys on helpottanut studiossa työskentelyä. Genelecin 8351B SAM™ -kolmitiemonitoreissa yhdistyy kuuntelu, joka sekä erottelee, että tarjoaa aidon kuuntelun.
“Kolmitiemonitoreilla uskallan tehdä isoja peliliikkeitä, leikkiä ja saan miksauksen soimaan. Samaan aikaan saan myös hirveän hyvin selvää kaikesta.”
Mikkola vertaa kaiuttimia valaistukseen. Monitorit ikään kuin valaisevat musiikkia.
“Ennen piti päättää, haluaako sopivan tunnelmallisen ja hämärän valaistuksen, joka soundaa mahdollisimman hyvältä ja miellyttävältä. Vai tarvitseeko siivousvalon, jottei tarvitse tihrustaa saadakseen selvää jostain. Nyt nämä studiomonitorit ovat kuin lamppu, jossa on nämä kummatkin ominaisuudet.”
Myös muuttuneet elämäntilanteet ovat vaatineet Mikkolaa nopeuttamaan omaa päätöksentekoaan studiolla. Ennen studiolla pystyi työskentelemään vaikka koko yön, mutta nyt aikaa on annettava perheelle. “On tärkeää ja hyvä juttu, että nyt on kaiuttimet, joilla saan luotettavan kuuntelun välittömästi aikaiseksi.”
Castrén & Snellman is one of Helsinki’s premier law firms with an enviable reputation in mergers, acquisitions and other specialised fields of business law. The company is also a pioneer of sustainable business practice in the legal services industry and was the first Finnish law firm to join the UN Global Compact initiative. The company recently carried out an extensive renovation of their client areas and staff workspaces, with the goal of taking the iconic 130-year old law firm to the next level. Castrén & Snellman turned to renowned Finnish AV integrator, 4Business Oy, who specialise in delivering tailored AV and automation systems. The solution integrated a large number of Genelec loudspeakers for flawless audio quality throughout the building.
Genelec products are a perfect match for the customer’s high quality standards.
“Genelec was simply an ideal choice for this project,” states 4Business COO Janne Lankinen. “On top of Genelec’s product quality, visual appearance and neutral sound reproduction, the company’s values and commitment to sustainable development fit beautifully into the original brief. Our aim was to modernise Castrén & Snellman’s activity–based office, including lobby areas, meeting rooms, conference rooms and training facility, with the requirement that the technology solutions would be as reliable and future proof as possible. Genelec products are a perfect match for the customer’s high quality standards, and their product lifecycle is the longest in the industry. Thanks to their sophisticated design and smart in-room calibration capabilities, Genelec products also reproduce the human voice very naturally, which makes them an excellent choice for video conferencing and speech reproduction systems.”
4Business installed a wide variety of Genelec speakers throughout the space depending on function, ranging from a pair of powerful 8351 Smart Active loudspeakers supplemented by two 7360 subwoofers in the 100-capacity event space, to the very compact 4010 and 4020 installation speakers for the wide variety of conference and board rooms.
Castrén & Snellman’s ICT Specialist, Mikko Kurhela, who worked closely with 4Business and Genelec throughout the project, describes the new system in their 100-person event space: “The solution we chose for music, speech and multimedia consists of two carefully tuned 8351 Smart Active loudspeakers, with two 7360 Smart Active subwoofers and an automatic mixer, all integrated into an easy-to-use AV system. The space is rectangular with the direction of presentation from the long wall into the room, so we needed wide angle speakers to ensure that speech is reproduced throughout the space with clarity and intelligibility. We also wanted high quality sound at low frequencies for music and multimedia, which we got by adding the two 7360 subwoofers. The speakers and subwoofers were tuned for the room using Genelec’s GLM calibration software.”
The Paja gym uses four ceiling-mounted 4020 speakers linked to a Sonos Port player for wireless music playback, while the music and speech sound system in the Tori café - which has a company library attached directly to the space - uses four 8430 IP loudspeakers. “Castrén & Snellman uses this multipurpose facility both as separate areas and sometimes as one large venue, for example for monthly company updates,” explains Lankinen. “The main challenge was to provide the flexibility for the customer to realign the layout without compromising reliability and ease-of-use. We solved this by using streamlined mobile screen stands with integrated custom loudspeaker mounts, with embedded AV-over-IP technologies for audio and video distribution combined with 8430 IP loudspeakers with their AES67 streaming capability. The customer can easily move these mobile units into the required position, and everything fires up automatically.”
Kurhela confirms that Genelec was ultimately a natural choice: “The stylish, uniform design language, audio quality, versatility and long lifecycle of the speakers were key values for us. The long lifecycle means that we’ll be able to re-use the speakers in different solutions following future renovations. As a company we are committed to finding sustainable solutions, so Genelec is a perfect fit for us from that point of view. The fact that they are an internationally renowned Finnish speaker manufacturer was also a plus.”
The final word goes to Janne Lankinen, who also appreciates Genelec products from a workflow perspective. “They are very familiar to our technical staff and thus are quick to install. Everything always works out of the box and we receive top notch support from the Genelec factory in Iisalmi. Shipments generally arrive right on time and there are no efficiency losses on site. We are able to deliver high quality, visually aesthetic, reliable solutions that last for years. It’s companies like Genelec who enable us to shine at what we do.”
Since the release of his third album ‘The Corner’ in 2008, Christian has carved his own niche as an in-demand songwriter and producer, working with artists including Tove Styrke, Zara Larsson, Veronica Maggio, Bo Kaspers, Tove Lo, Hov1, Petter, Juliander and Fläskkvarteten. He’s also launched his own independent record label, developing new artists such as Ellen Krauss.
In this exclusive One on One interview, Christian talks about his career, his approach to making records, his production techniques, and his Genelec monitors.
He tells us that “the luxury of working as a producer now, with a project like this, is to produce it – but at the same time stay out of the way!”
Watch the full video here.
Ozcan has been making music since the age of 14, when his instinctive skill with the flute and keyboard were the first signs of an emerging, prodigious talent. His first single, Chica Good, arrived in 2006 but it was 2011’s Reboot, swiftly followed by 2012’s The Box, that solidified his reputation. In the years since, he has produced not only a string of hit singles but also collaborations with peers including Paul Van Dyk and Tiesto, while continuing to push his own creative limits with the development of soft-synths and soundbanks.
However, most of that work was performed in less-than-ideal listening environments. “The first space that I worked in... I’m not sure I could call it a studio since it was in the attic of my parent’s home,” recalls Ozcan. “I just had two speakers in there – actually just two hi-fi speakers! Then I moved to an apartment and I had a room – so I put some acoustic treatment on the walls, some bass traps, and just two monitors and a sub. I made my music in there for years, but when my friends came to visit I’d tell them to stand in the corner because that’s where they could hear the bass properly! If you took one step to the side then the sound changed completely.”
Ozcan describes his new studio as “everything I’ve dreamed of for the last 15 years – I can’t quite believe that it’s here. This room reflects my energy. It’s an extension of myself and my music. When you close the door, you’re in a different world, it’s amazing.”
The room itself is a blazing celebration of neon, seamlessly shifting between colour schemes to suit the mood of the artist. Sculpted acoustic panels from Artnovion adorn the walls while Morel has even recreated Ozcan’s logo on the ceiling. The Genelec smart active monitoring system which forms the studio’s centrepiece is just as impressive, with two 1234As installed as main monitors, accompanied by a 7382A subwoofer. Adding symmetry, what appears to be a second 7382A is in fact a customised bass trap designed around a Genelec grille. In addition, two of the newly-launched 8351B coaxial point source monitors from The Ones range are installed on Ozcan’s desk for nearfield listening. The DJ describes the sound as “mind blowing”.
Towards the conclusion of the project, Morel and Ozcan shared the process of calibrating the Genelec monitoring system for the room. That work began with Genelec’s GLM calibration software, then was fine-tuned by ear. “We went very deep into the process,” says Morel. Yet ultimately, little tuning was actually required. “You don’t have to do much,” explains Ozcan, “with almost no tweaking it sounds fantastic. You feel it in your chest and it gives you goosebumps because you can hear everything. I can hear things I’ve never heard before!”
For Morel, who has now designed private studios for some of the world’s most celebrated DJ producers, this is one of his proudest achievements. “This ranks as one of the top three studios that I’ve created,” he declares without hesitation. “Certainly for the design, this is number one.”
Louis had more #1 singles in 2019 than any other producer or songwriter, including Post Malone’s ‘Wow’ and ‘Sunflower’,” Halsey’s ‘Without Me’, and ‘Sucker’ by the Jonas Brothers’. That same year he produced eight Top 10 hits, staying atop the Hot 100 Producers chart for weeks. And in September, he equalled Taylor Swift’s record for the most production credits –18 – in a single week on the Billboard Hot 100.
So fresh from his recent Grammy nominations for Post Malone’s ‘Hollywood’s Bleeding’ record, and its hit single ‘Circles’, we couldn’t wait to catch up with Louis down at his favourite room in West Hollywood’s Electric Feel Studios, fully loaded with Genelec 1035A and 8351B monitors.
The most important thing to me about my creative process is that I always feel like I'm getting the exact feeling I have in my head out into the world.”
In this exclusive Pro at Home video, Louis talks about the early days recording in his parents’ basement in Boston, and how even now he still relies on the same basic setup of mic, interface, laptop – and monitors! “The most important thing to me about my creative process is that I always feel like I'm getting the exact feeling I have in my head out into the world,” Louis explains.
I had never worked in such a wide open room before, but at least having the Genelecs there gave me some type of starting point and you know, I could kind of work around that.
Having created quite a hit factory in his room at Electric Feel, the latest Post Malone record saw Louis working in an ad-hoc studio space in Post’s home - using the same recording rig that had accompanied him on tour, which features Genelec 8351s. “I had never worked in such a wide open room before, but at least having the Genelecs there gave me some type of starting point and you know, I could kind of work around that.”
It’s clear that Louis’ close collaboration with Post Malone has created a bond that goes way deeper than just a musical relationship:
“He’s family to me. It makes me want to really enjoy every day of my life to the fullest, and find out how I can still play and find things in my life that are going to make me feel like a kid again, and that's what I'm always looking for at the end of the day – whether it's music, or just life in general.”
Genelec’s Smart Active Monitors are helping to make SOUND360 stand out from the crowd in South Korea, with the country’s first 9.1.6 Dolby Atmos studio. The SOUND360 studio is the creation of CEO Jung Hoon Choi, who is already a very well-known figure in the Korean music industry through his Audioguy record label.
“The recording room is designed for Dolby Atmos 3D audio, and immersive sound recording and mixing,” explains Ha Neul Lee, the audio engineer responsible for both stereo and Dolby Atmos mixing at Audioguy. “Reverberation time and acoustic treatment for the studio were also calibrated for 360-degree mixing with the surround monitors.”
The decision to create an immersive recording space was based on the belief that this is the direction that audio recording is moving in, while the 9.1.6 format was selected for its ability to deliver 3D mixes through popular consumer devices. “As you know, before immersive audio we used to have surround sound,” comments Choi. “We used to be able to produce multi-channel surround content, but not many consumers could play that content through a multi-channel playback system. For that reason, surround didn’t become standard.
Genelec monitors deliver consistent sound not only at loud volumes, but also at relatively low volumes so I can easily get the right balance of each instrument in the mix.
“Now that immersive audio is available, Dolby Atmos is one of the various immersive audio formats that SOUND360 currently offers,” Choi adds. “The mixes that are created by the 9.1.6 system here at the studio, can easily be enjoyed using just a simple stereo system like you would find on a typical mobile device. This compatibility is at last making 3D audio more accessible to the public, and it is becoming popular.”
When it came to the choice of monitors for the immersive space, Genelec was the only option. “For audio engineers like me, the importance of monitor speakers cannot be overstated,” says Choi. “One of the biggest reasons I have been using Genelec for a long time is because I tend to set the monitoring level slightly lower than other engineers, typically around 75 dB, and make it louder at certain points. Genelec monitors deliver consistent sound not only at loud volumes, but also at relatively low volumes so I can easily get the right balance of each instrument in the mix.”
Having opted to choose Genelec, SOUND360 worked with local Genelec distributor Sama Sound to create the 9.1.6 setup. The space utilises three-way coaxial monitors from The Ones series, and features three 8351s for the L-C-R channels, twelve 8341s as surrounds and overheads, and three 7370s as subs – with the whole system tuned and calibrated using GLM Loudspeaker Manager software. The all-Genelec solution has been a popular choice with the team of engineers working at SOUND360.
By using Genelec Smart Active Monitors with GLM, we were able to calibrate the monitoring systems for consistent sound from one room to the next.
“Genelec monitors allow users to calibrate and control with ease,” says Lee. “I feel so much gratitude for the 8300 series. If monitors sound different in different rooms, as an audio engineer, it feels like going through hell every day. By using Genelec Smart Active Monitors with GLM, we were able to calibrate the monitoring systems for consistent sound from one room to the next. We were even able to fix acoustical problems while working with the consistent sound. Now we have the room, which is acoustically well set up, and I am 99% satisfied with Genelec. I kept the 1% to spare my pride!”
SOUND360 is also proving to be a popular new facility for Korea’s musicians. “We’ve been working with various young emerging pop artists,” says Choi. “We’ve just finished Atmos mixing and mastering ‘THE SHOW’ live album by Black Pink. We’ve also worked with ITZY, TWICE, AKMU, LISA, STAYC, Beenzino, Treasure, Fisherman, BewhY, Giriboy, Sumin and Guckkasten, plus LEENALCHI Band’s album ‘Sugung-ga’ and ‘Please Don’t Go (Yeobonari)’ were also mixed here in Dolby Atmos.”
As the first recording space in Korea to offer a 9.1.6 setup, SOUND360 is already a pioneer. Through careful planning and the right choice of equipment it has every chance to succeed in its mission to help more people enjoy immersive audio.
Genelec Visits Morten Lindberg’s Stunning Immersive Audio Studio
What is SAM technology? How will it benefit me? | One Minute Masterclass Season 2 Part 8
What is GLM (Genelec Loudspeaker Manager)? | One Minute Masterclass Season 2 Part 9
Developing The Ones
Review: Genelec The Ones
We are The Ones
How GLM™ (Genelec Loudspeaker Manager) Software Works
Genelec Visits Morten Lindberg’s Stunning Immersive Audio Studio
In the world of immersive music recording, no-one has done more than Grammy-winning sound engineer and music producer Morten Lindberg to set the gold standard for what can be achieved in this field.
We visited Morten at his incredible studio in Oslo, Norway to talk about his approach to immersive recording, and how his new 7.1.4 Genelec monitoring system has become an essential part of his workflow.
Welcome to a fascinating insight into the world of a true immersive audio pioneer.
What is SAM technology? How will it benefit me? | One Minute Masterclass Season 2 Part 8
What is Genelec’s Smart Active Monitor (SAM™) Technology and how will it benefit you?
What is GLM (Genelec Loudspeaker Manager)? | One Minute Masterclass Season 2 Part 9
GLM is a software for connecting, calibrating and controlling your Genelec SAM monitoring systems.
Developing The Ones
In this video we find out what the motivation was for creating Ultimate Point Source monitors, what benefits they offer, and what sets The Ones apart from every other studio loudspeaker that has gone before.
We are The Ones
Iisalmi, Finland. 19th October 2012. Our journey begins with inspiration from our users around the world. That inspiration found its way to Ilpo Martikainen’s notebook, and now we’re finally here. We wanted The Ones to point the way to the future of audio monitoring.
How GLM™ (Genelec Loudspeaker Manager) Software Works
Frustrated that your material doesn’t sound so great on other systems? In this video we show you how to calibrate the Genelec SAM™ monitors with the Genelec Loudspeaker Manager (GLM™) Software to get the most out of your room and ensuring that your mixes translate perfectly.
{"fi-FI":" ","ru-RU":" ","de-DE":" ","en-US":" ","sv-SE":" "}
"Today we review the GENELEC 8351 studio monitors, the revolutionary 3-way Coaxial Speakers with Built-in DSP. We will discuss the importance of correct monitoring in professional studios and show how to calibrate the Speakers."
{"fi-FI":"RedStone Productions' [video review](https://youtu.be/YQgFl7H2g34 "RedStone Productions - LOOK INTO - Genelec 8351") of 8351 studio monitors.","ru-RU":"RedStone Productions' [video review](https://youtu.be/YQgFl7H2g34 "RedStone Productions - LOOK INTO - Genelec 8351") of 8351 studio monitors.","de-DE":"RedStone Productions' [video review](https://youtu.be/YQgFl7H2g34 "RedStone Productions - LOOK INTO - Genelec 8351") of 8351 studio monitors.","en-US":"RedStone Productions' [video review](https://youtu.be/YQgFl7H2g34 "RedStone Productions - LOOK INTO - Genelec 8351") of 8351 studio monitors.","sv-SE":"RedStone Productions' [video review](https://youtu.be/YQgFl7H2g34 "RedStone Productions - LOOK INTO - Genelec 8351") of 8351 studio monitors."}
Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.
{"fi-FI":"Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.\n\nRead the full review: [Stereo Sound 8331 & 8341 Review](http://www.stereosound.co.jp/media/genelec/201712/ "Stereo Sound: 8331 and 8341 Review")","ru-RU":"Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.\n\nRead the full review: [Stereo Sound 8331 & 8341 Review](http://www.stereosound.co.jp/media/genelec/201712/ "Stereo Sound: 8331 and 8341 Review")","de-DE":"Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.\n\nRead the full review: [Stereo Sound 8331 & 8341 Review](http://www.stereosound.co.jp/media/genelec/201712/ "Stereo Sound: 8331 and 8341 Review")","en-US":"Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.\n\nRead the full review: [Stereo Sound 8331 & 8341 Review](http://www.stereosound.co.jp/media/genelec/201712/ "Stereo Sound: 8331 and 8341 Review")","sv-SE":"Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.\n\nRead the full review: [Stereo Sound 8331 & 8341 Review](http://www.stereosound.co.jp/media/genelec/201712/ "Stereo Sound: 8331 and 8341 Review")"}
Dokumentit
Dokumentit
8351B Operating Manual The Ones Brochure Immersive Solutions Brochure SAM™ Series Full Line Catalogue Genelec 8351B Operating Manual - ChineseTiedostot
8351B - Simulation File (CLF) Line Drawing (PDF) 8351B Line Drawing (DWG) 8351B 8351B - Simulation File (GLL)Arviot
Recording Magazine - 8351B Review RedStone Productions, March 2018 (NL) Stereo Sound: 8331 & 8341 Review, November 2017 (Japan) Ljud & Bild (online): Genelec 8351 SAM - Monitorer på steroider, April 2016 (SE) Monitor Pro Magazine (PDF), March 2016 (DK) proaudio.de: Genelec 8351A - Near/Midfield Dreiwege-Studiomonitor mit Koaxialsystem, November 2015 (DE) Resolution Awards Winners' Supplement 2015, October 2015 Bonedo Magazin (online): Genelec 8351APM Test - Studiomonitor mit Koax-Chassis, June 2015 (DE) delamar Magazin (online): Genelec 8351 Testbericht, August 2015 (DE) Sound on Sound Magazine: Genelec 8351A Active Nearfield Monitor, August 2015 (UK) Canadian Musician Magazine, July 2015 (CA) Sound & Recording Magazin (PDF): Genelec 8351A Koaxialer 3-Wege-Monitor mit DSP-System, April 2015 (DE) i-fidelity online Magazin: Genelec 8351A - Auf den Punkt , April 2015 (DE) Stereoplay online Magazin: Graue Eminenz, March 2015 (DE)"Today we review the GENELEC 8351 studio monitors, the revolutionary 3-way Coaxial Speakers with Built-in DSP. We will discuss the importance of correct monitoring in professional studios and show how to calibrate the Speakers."
RedStone Productions' video review of 8351 studio monitors.
Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.
Stereo Sound Online Magazine's (JP) review of 8331 and 8341 SAM™ Studio Monitor. The review is written in Japanese and it was published in November 2017.
Read the full review: Stereo Sound 8331 & 8341 Review
Ljud & Bild's online review of 8351 studio monitors.
Ljud & Bild's online review of 8351 studio monitors in Swedish. The review was published in April 2016.
Monitor Pro Magazine's (DK) review of 8351A studio monitors. Published in March 2016.
Monitor Pro Magazine's (DK) review of 8351A studio monitors. Published in March 2016.
Proaudio.de website's online review of Genelec 8351A. The review is written in German and it was published in November 2015.
Proaudio.de website's online review of Genelec 8351A. The review is written in German by Peter Kaminski. It was published on proaudio.de website in November 2015.
The Genelec 8351 studio monitor was awarded a resolution award 2015. Find out the interesting product features of the winner by reading the article "Resolution Awards Winners' Supplement 2015", published in October 2015.
Resolution Awards Winners' Supplement 2015. The article was published in October 2015.
Bonedo Magazin's (DE) online review of 8351 studio monitor. The review was published in June 2015.
Bonedo Magazin's (DE) online review "Genelec 8351APM Test: Studiomonitor mit Koax-Chassis" of 8351 studio monitor. The review was published in August 2015, and is written by Felix Klostermann. It is available in German language.
Read the full review here.
"Die findigen Finnen bieten nun einen weiteren Lautsprecher mit automatischer Anpassung an die Raumakustik. Und der hat es in sich. Erfahre im Genelec 8351 Testbericht, wie die neuartige Konstruktion klanglich überzeugt und ob sich der Kauf auch für dich und dein Studio lohnt."
Quelle: www.delamar.de
delamar Magazine's (DE) online review "Genelec 8351 Testbericht: Studiomonitor mit automatischer Raumanpassung" was published in August 2015. The review is written in German language.
"Now, with the release of the 8351A Smart Active Monitor, Genelec have not only managed to develop a revolutionary approach to the art of three-way monitor design, but they've also managed to scratch all of my monitor itches at once."
-Bob Thomas, the author of the review article
Sound on Sound Magazine's (UK) review of Genelec 8351A Active Nearfield Monitor. Written by Bob Thomas. The review was published in August 2015.
"After taking the pair of Genelec 8351 Smart Active Monitors out of their boxes and catching a glance of their sleek design and familiar shade of grey (they also come in white), I couldn't help myself; I had to plug them in and fire them up right away."
-Paul Lau, the author of the review article
Canadian Musician Magazine's (CA) review article "Genelec 8351 Smart Active Monitors" was published in July 2015. The review is written by Paul Lau.
The Sound & Recording magazine's (DE) review "Genelec 8351A Koaxialer 3-Wege-Monitor mit DSP-System" was published in April 2015. It is written by Anselm Goertz and it is available in German.
The Sound & Recording magazine's (DE) review "Genelec 8351A Koaxialer 3-Wege-Monitor mit DSP-System" was published in April 2015. It is written by Anselm Goertz and it is available in German.
"8351A und ist die erste Mutation der bereits getesteten 8260. Für diesen ausgewachsenen Dreiwege-Monitor hatten die Skandinavier einen völlig neuartigen koaxialen Mitteltöner entwickelt, der nun auch integraler Bestandteil der kleinen Schwester wurde. Die 8260 hatte allerdings noch einen klassischen Tieftöner, weshalb sich die Frage stellte, wie man auch den Bass akustisch in dieselbe Achse bekommt wie die Mittelhochton-Einheit. Die Lösung, die sich Genelec ausgedacht hat, ist ebenso simpel und neuartig wie genial"
- Raphael Vogt, the author of the review article
i-fidelity online Magazine's (DE) review of Genelec 8351A Active Nearfield Monitor. Written by Raphael Vogt. The review was published in April 2015.
"Der neue Aktivmonitor 8351A vom finnischen Studiolautsprecherspezialisten Genelec zählt zu den derzeit durchdachtesten Schallwandlern des Weltmarkts. Ebenso beeindruckend fällt auch das klangliche Ergebnis aus."
- Jürgen Schröder, the author of the review article
Stereoplay online Magazine's (DE) review of Genelec 8351A Active Nearfield Monitor. Written by Jürgen Schröder. The review was published in March 2015 and it is available in German.
hello
